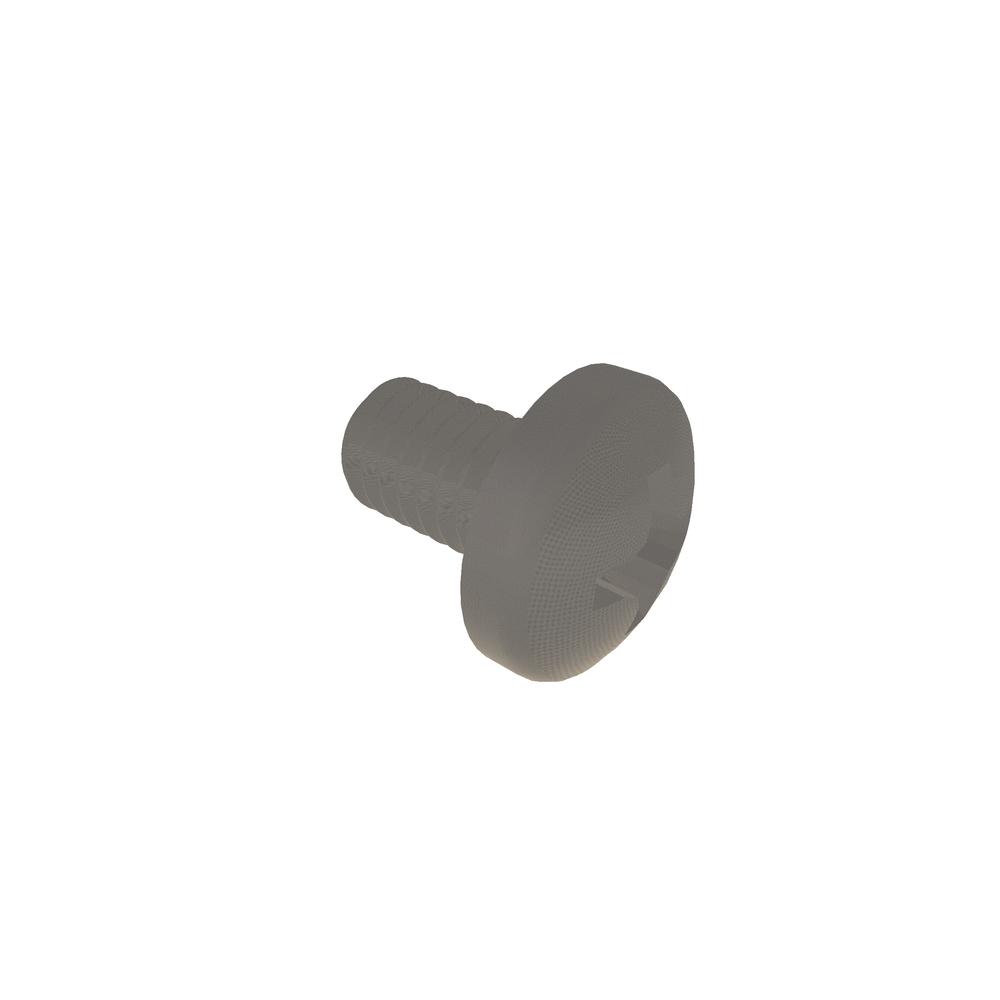

.35S6PPMN
M3.5-.6 X 6 PH PAN NYL
Alternate Codes: N/A
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|
| $0.128 | $0.079 | $0.057 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M3.5x0.6 |
| Material | Nylon |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.50 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 3.92 mm |
| Head Radius (Min.) | 6.00 mm |
| Body Diameter (Min.) | 3.00 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Depth (Max.) | 1.90 mm |
| Brand | VARIED |
| Length | 6mm |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.50 mm |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.64 mm |
| Head Height (Max.) | 2.60 mm |
| Head Height (Min.) | 2.46 mm |
