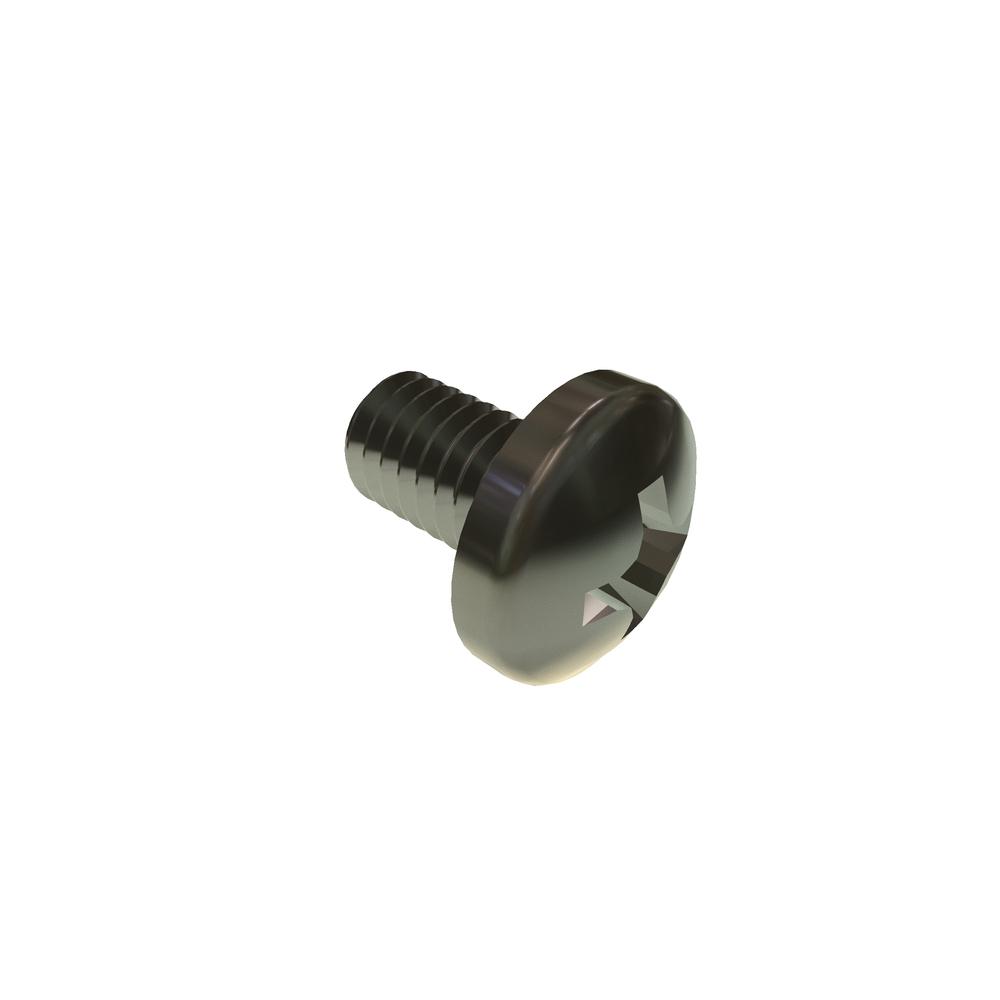

M3.5-.6 X 6 PH PAN PATCH SST RoHS
.35S6PPMS/P
| Item Id | .35S6PPMS/P |
| Description | M3.5-.6 X 6 PH PAN PATCH SST RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.60 mm |
| Head Height (Max.) | 2.60 mm |
| Head Height (Min.) | 2.30 mm |
| Head Radius (Min.) | 6.00 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.50 mm |
| Penetration Depth (Max.) | 1.90 mm |
| Penetration Depth (Min.) | 1.40 mm |
| Recess Diameter | 3.92 mm |
| RoHS | Compliant |
| Thread Size | M3.5x0.6 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
