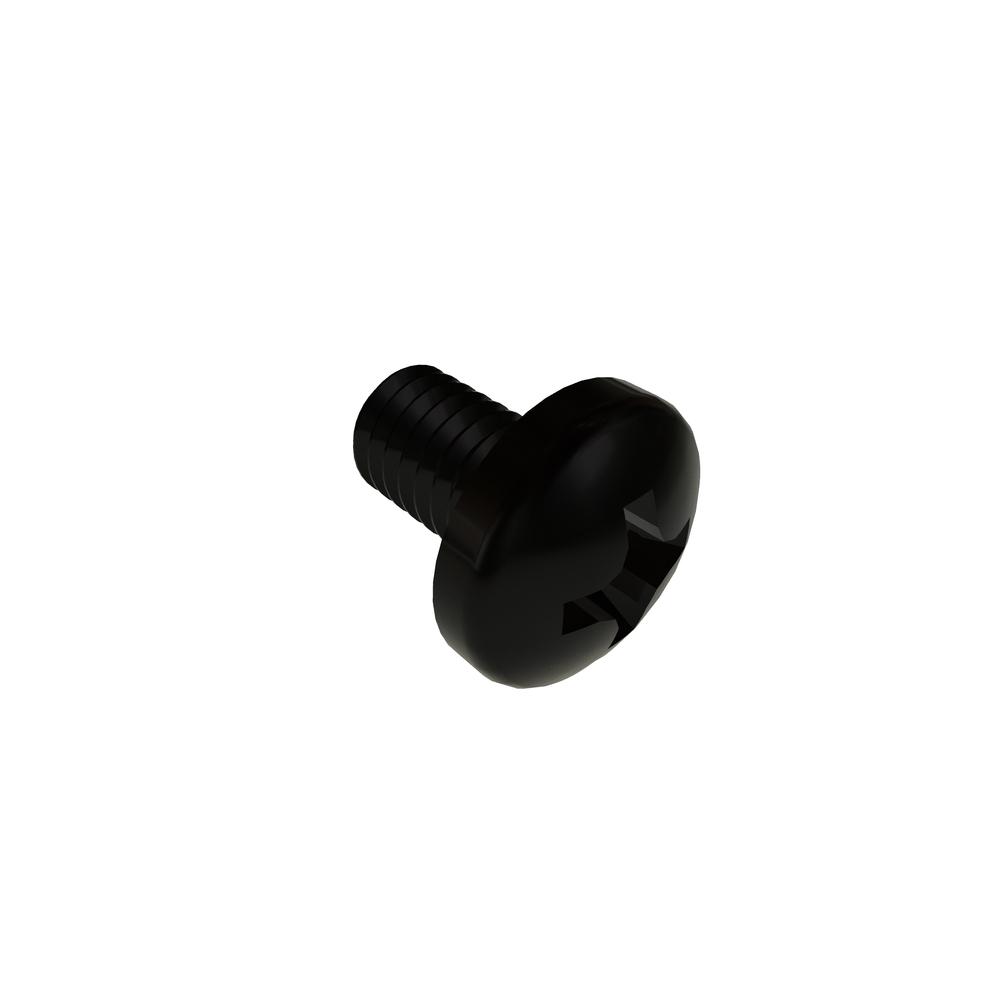

Image for reference purposes only. Actual product may vary.
.35S6PPMZ/BR/P
M3.5-.6 X 6 PH PAN BLK ZNC RoHS PATCHLK
Alternate Codes: N/A
M3.5-.6 X 6 Phillips Pan Head Patch Steel Black Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.650 | $0.414 | $0.380 | $0.350 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M3.5x0.6 |
| Finish | Zinc Black |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 3.92 mm |
| Head Radius (Min.) | 6.00 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.60 mm |
| Head Height (Max.) | 2.60 mm |
| Head Height (Min.) | 2.30 mm |
| Nominal Diameter | 3.50 mm |
| Head Type | Pan |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.90 mm |
