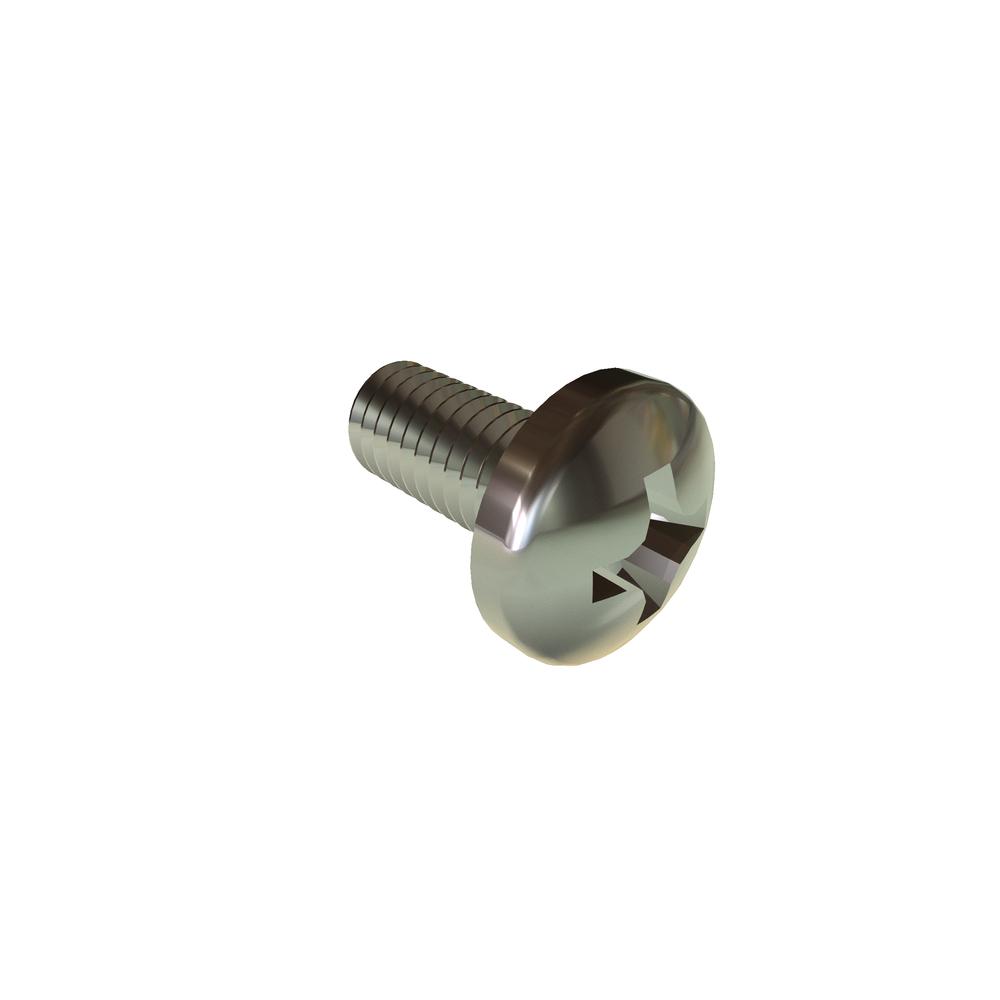

M3.5-.6 X 8 PH PAN SST RoHS
.35S8PPMS
| Item Id | .35S8PPMS |
| Description | M3.5-.6 X 8 PHIL PAN DIN7985 SST RoHS |
| Alternate Codes | 1900-0039, 92000A153, BN660 M3.5X8 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92000A153 92000A153 |
| Body Diameter (Max.) | 3.50 mm |
| Body Diameter (Min.) | 3.00 mm |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.64 mm |
| Head Height (Max.) | 2.60 mm |
| Head Height (Min.) | 2.46 mm |
| Head Radius (Min.) | 6.00 mm |
| Head Type | Pan |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 3.50 mm |
| Recess Depth (Max.) | 1.90 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Diameter | 3.92 mm |
| RoHS | Compliant |
| Thread Size | M3.5x0.6 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
