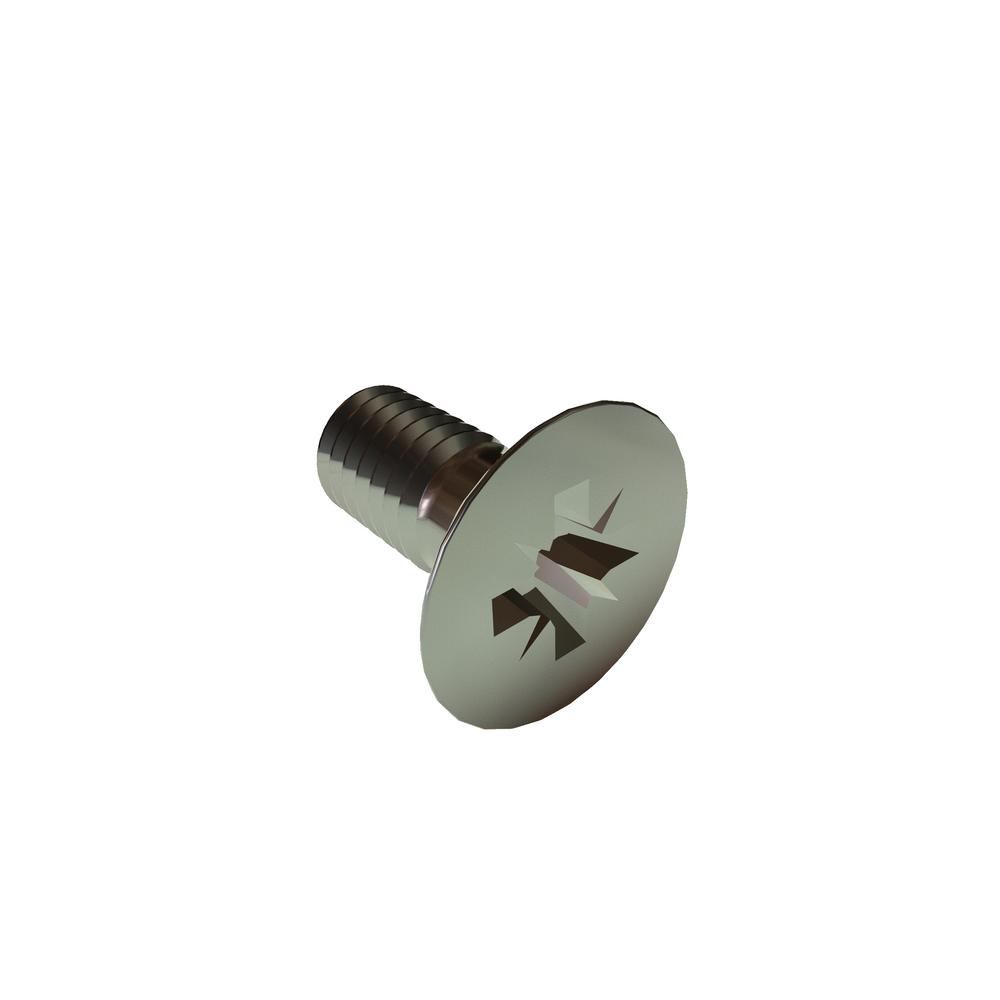

M3.5-.6 X 8 POZI FLAT SST RoHS
.35S8ZFMS
| Item Id | .35S8ZFMS |
| Description | M3.5-.6 X 8 POZI FLAT SST RoHS |
| Alternate Codes | 1900-0038 |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Pozi |
| Finish | Plain |
| Head Diameter (Max.) | 7.30 mm |
| Head Diameter (Min.) | 6.94 mm |
| Head Height | 2.30 mm |
| Head Type | Flat |
| Length | 8mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.50 mm |
| Recess Depth (Max.) | 2.20 mm |
| Recess Depth (Min.) | 1.76 mm |
| Recess Diameter | 4.40 mm |
| Recess Width | 0.91 mm |
| RoHS | Compliant |
| Thread Size | M3.5x0.6 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
