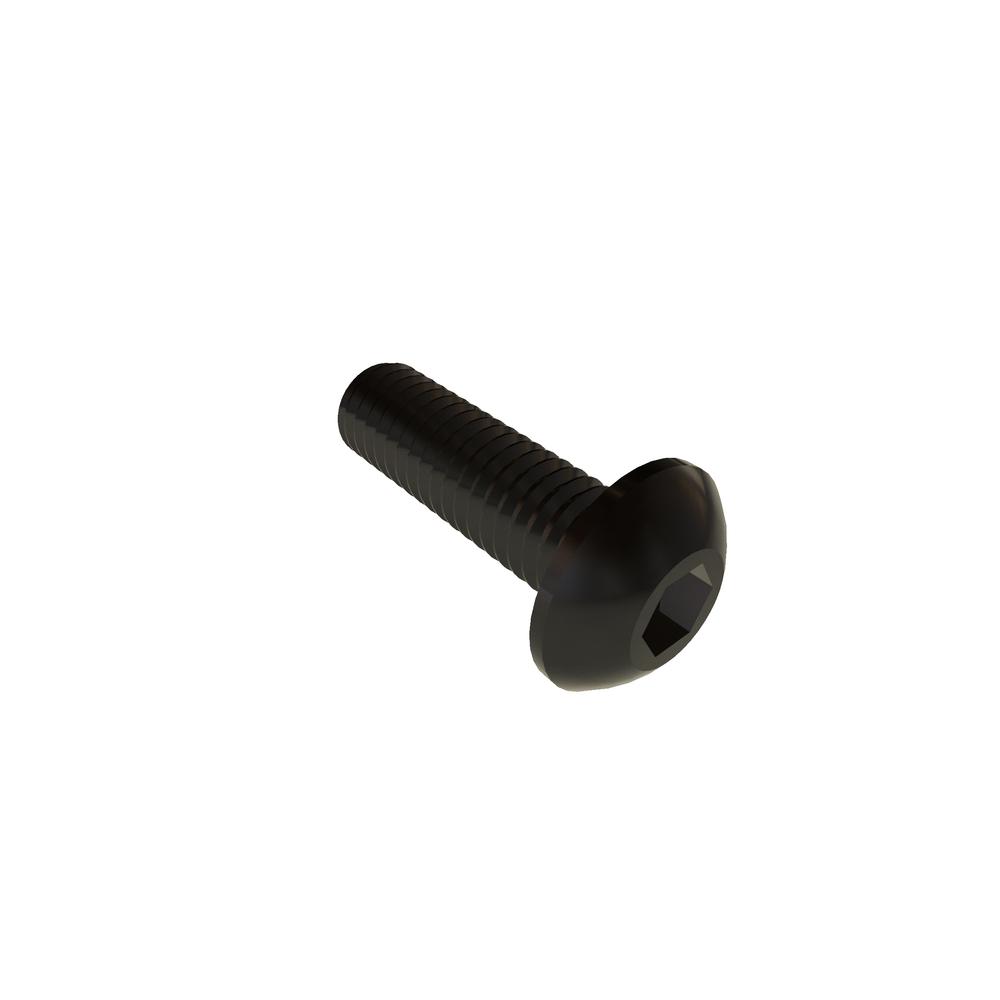

M3-.5 X 10 BUT SOC SST RoHS BLK RoHS
.3C10BHCSB
| Item Id | .3C10BHCSB |
| Description | M3-.5 X 10 BUT SOC SST BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 3.60 mm |
| Fillet Transition Diameter (Min.) | 3.20 mm |
| Finish | Black Oxide |
| Head Diameter (Max.) | 5.70 mm |
| Head Diameter (Min.) | 5.40 mm |
| Head Height (Max.) | 1.65 mm |
| Head Height (Min.) | 1.43 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Head Type | Button |
| Hex Socket Size | 2.00 mm |
| Key Engagement | 1.04 mm |
| Length | 10mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 3 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
