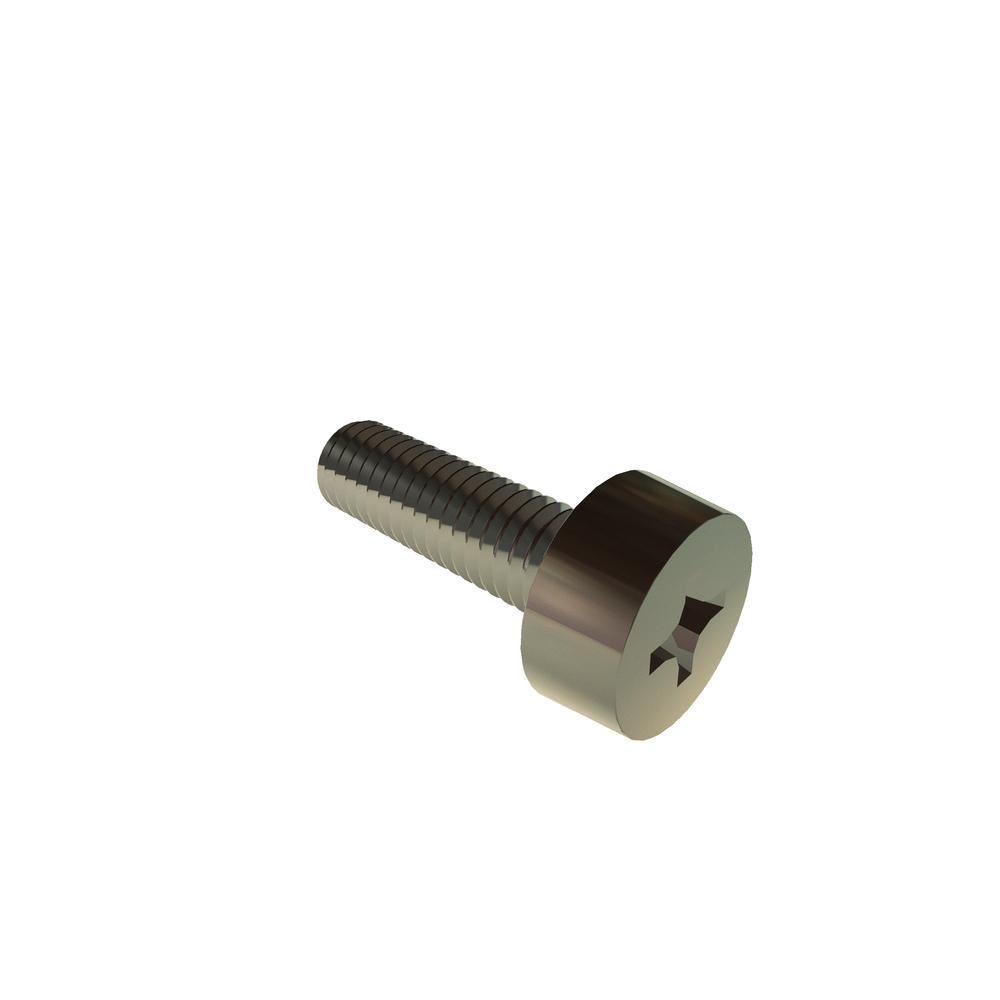

Image for reference purposes only. Actual product may vary.
.3C10PCMS
M3 X 10 PHIL CHEESE SS
Alternate Codes: N/A
M3 X 10 Phillips Cheese Head ISO 7048 Stainless Steel RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|---|
| $0.163 | $0.098 | $0.082 | $0.067 | $0.059 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 10mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Cheese |
| Recess Diameter | 3.10 mm |
| Recess Depth (Min.) | 1.70 mm |
| Recess Depth (Max.) | 2.00 mm |
| Head Diameter (Max.) | 6.00 mm |
| Head Diameter (Min.) | 5.70 mm |
| Head Height (Max.) | 2.52 mm |
| Head Height (Min.) | 2.40 mm |
