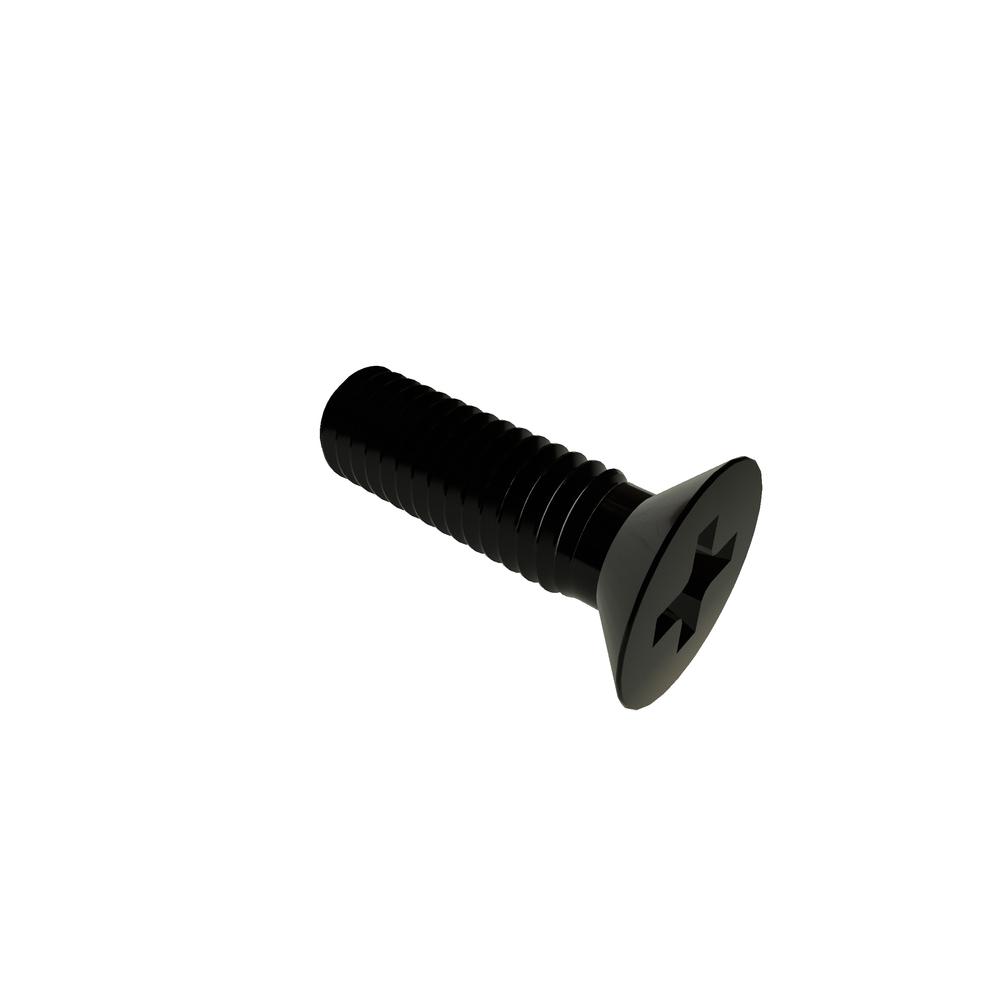

Image for reference purposes only. Actual product may vary.
.3C10PFMZB/P
M3-.5 X 10 PHIL FLAT PATCH STL BLK RoHS
Alternate Codes: N/A
M3-.5 X 10 Phillips Flat Head Patch Steel Black Oxide RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 10mm |
| Thread Size | M3x0.5 |
| Finish | Black Oxide |
| Drive Type | Phillips |
| Locking Element | Patchlock |
| Material | Steel |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Flat |
| Drive Size | 1 |
| Recess Diameter | 3.10 mm |
| Head Height | 1.70 mm |
| Recess Depth | 2.08 mm |
| Recess Width | 0.79 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
