  • Item Id: .3C10PPES

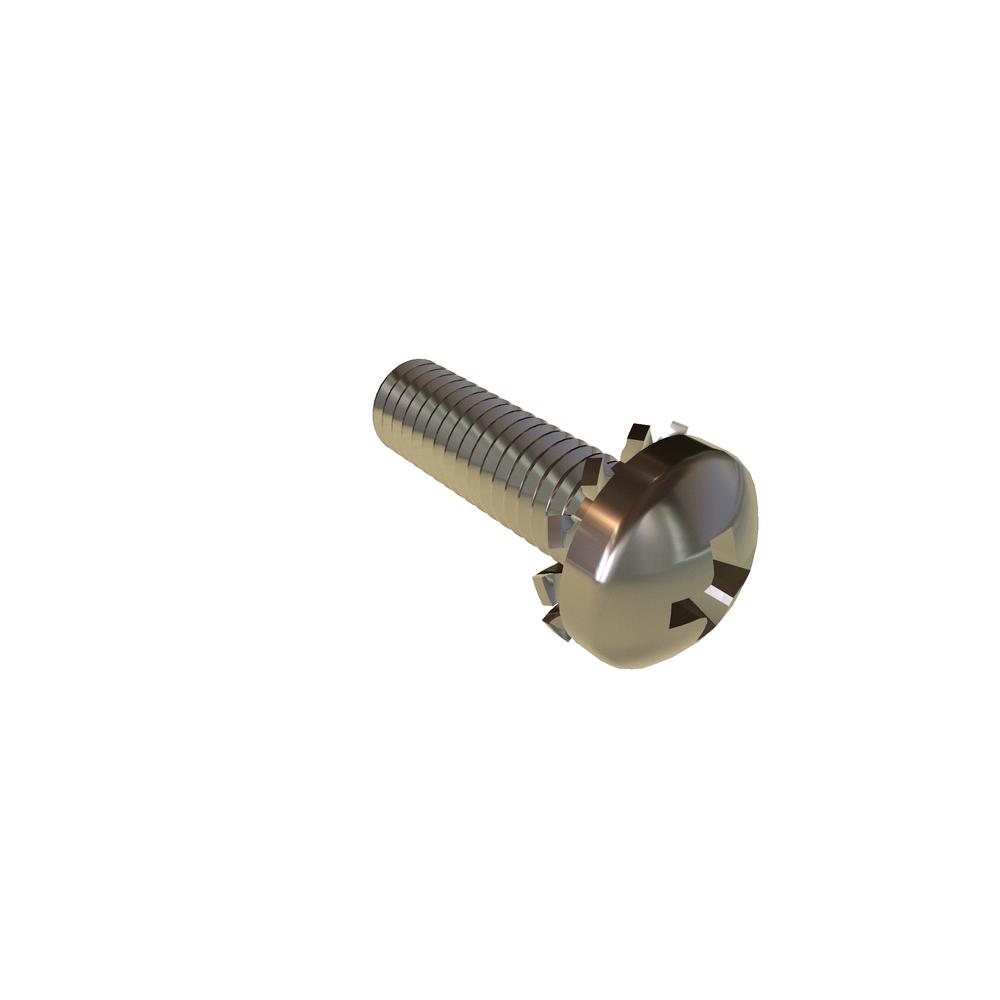

  • Description: M3-.5 X 10 PHIL PAN EXT SEMS SST RoHS
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.593$0.326$0.272$0.233Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference90317A529
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Clear
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.20 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Lock Washer Outside Diameter (Max.)5.85 mm
    Lock Washer Outside Diameter (Min.)5.45 mm
    Lock Washer Thickness (Max.)0.45 mm
    Lock Washer Thickness (Min.)0.30 mm
    MaterialStainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Penetration Depth (Max.)1.80 mm
    Penetration Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeExternal Tooth Lock Washer

Item Substitutes

Item IdDescription
.3C10PPEZRM3-.5 X 10 PHIL PAN EXT SEMS STL ZN CR3View Details
