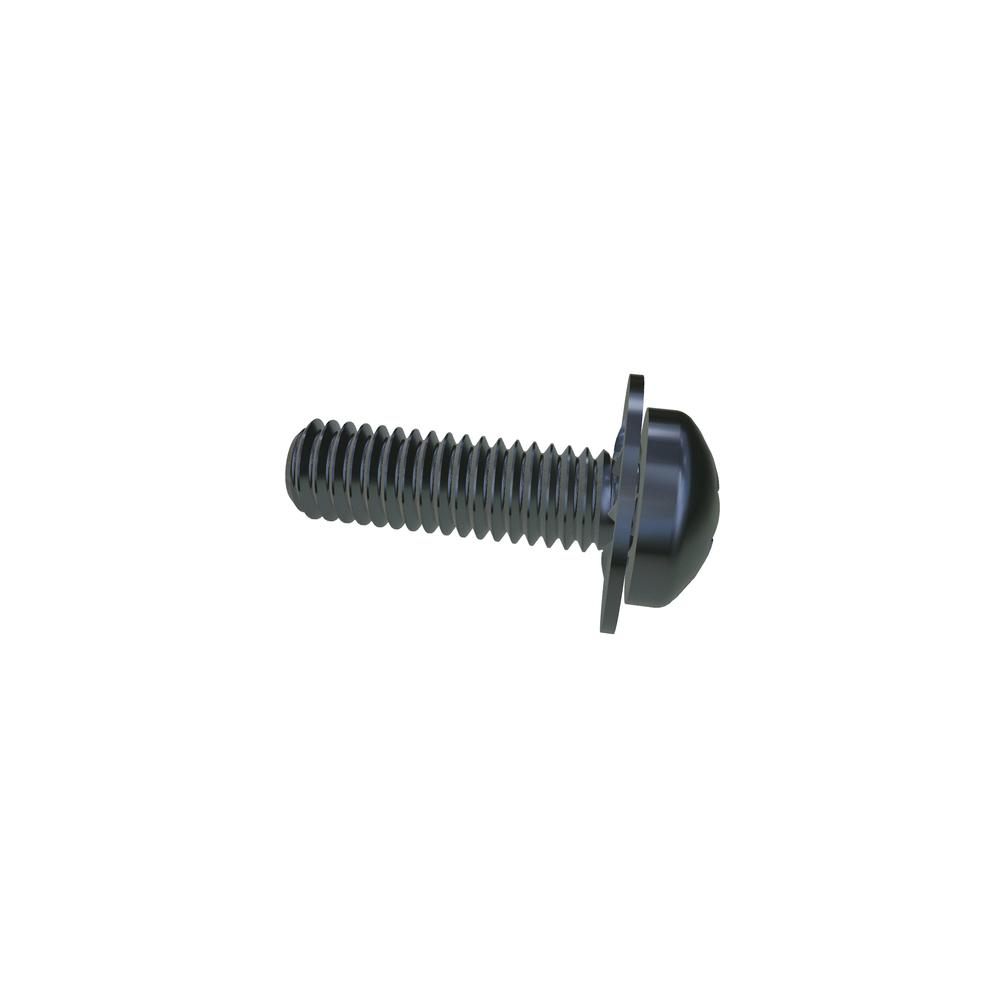

M3-0.5 X 10 PH PAN INT SEMS STL ZN CR3
.3C10PPIZR
| Item Id | .3C10PPIZR |
| Description | M3-.5 X 10 PH PAN INT SEMS STL ZN RoHS |
| Alternate Codes | .3C10PPIZZ/R |
| Extended Description | B1188D |
| Packaging | EA |
| Additional Industry Cross Reference | 90403A854 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Length | 10mm |
| Lock Washer Outside Diameter (Max.) | 7.35 mm |
| Lock Washer Outside Diameter (Min.) | 6.85 mm |
| Lock Washer Thickness (Max.) | 0.45 mm |
| Lock Washer Thickness (Min.) | 0.30 mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Penetration Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Internal Tooth Lock Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
