  • Item Id: .3C10PPMZR

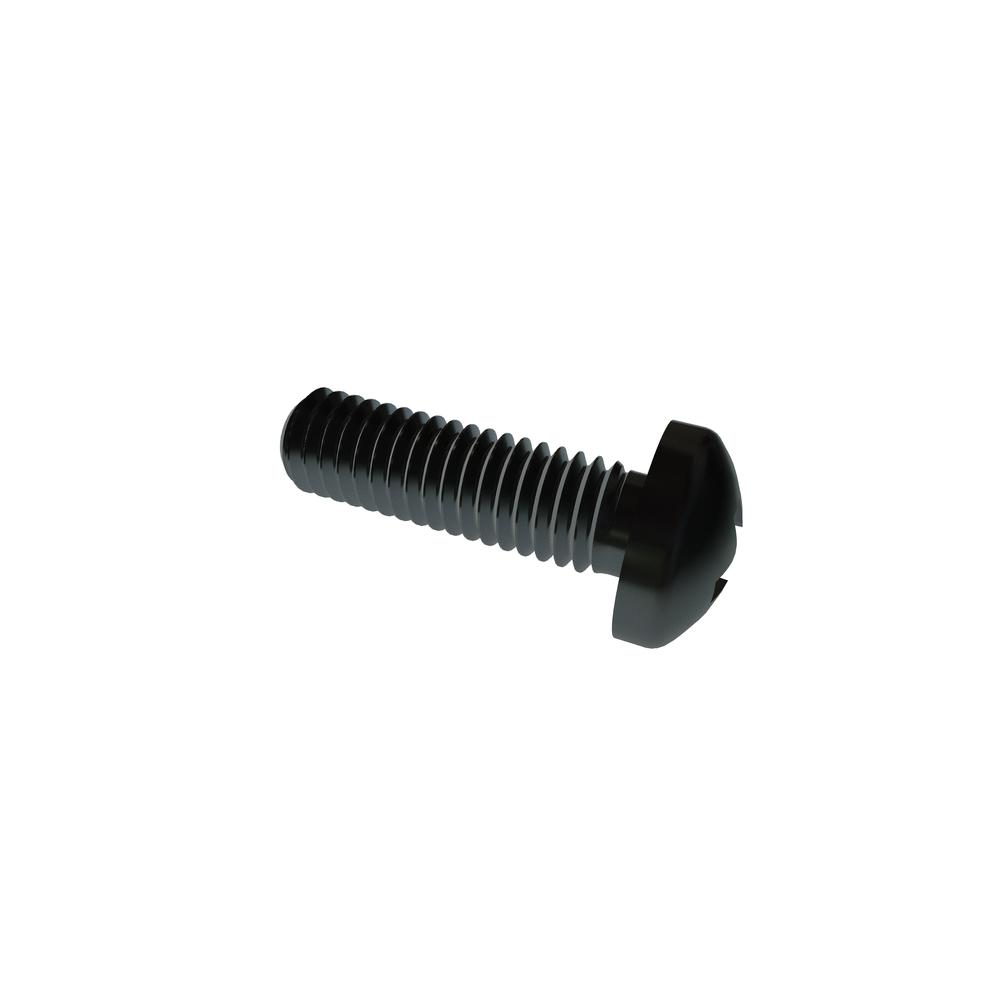

  • Description: M3-.5 X 10 PH PAN STL ZN
  • Alternate Codes: .3C10PPMZZ/R, 014-0001-02, 014-0001-02A, 300608, 386-05003-10, 60124, 7000-0046, 92005A120, BN384 M3X10
  • Quantity Discounts:
    1 to 499500 to 9991000 to 24992500 to 4999Call For
    $0.069$0.042$0.031$0.024Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92005A120 92005A120
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Clear
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C10PPMNM3-.5 X 10 PH PAN NYLView Details
.3C10PPMSM3-.5 X 10 PH PAN SSTView Details
.3C10PPMS/PM3-.5 X 10 PH PAN PATCH SST RoHSView Details
.3C10PPMZBM3-.5 X 10 PH PAN STL BLK RoHSView Details
.3C10PPMZNM3-.5 X 10 PH PAN STL NIView Details
