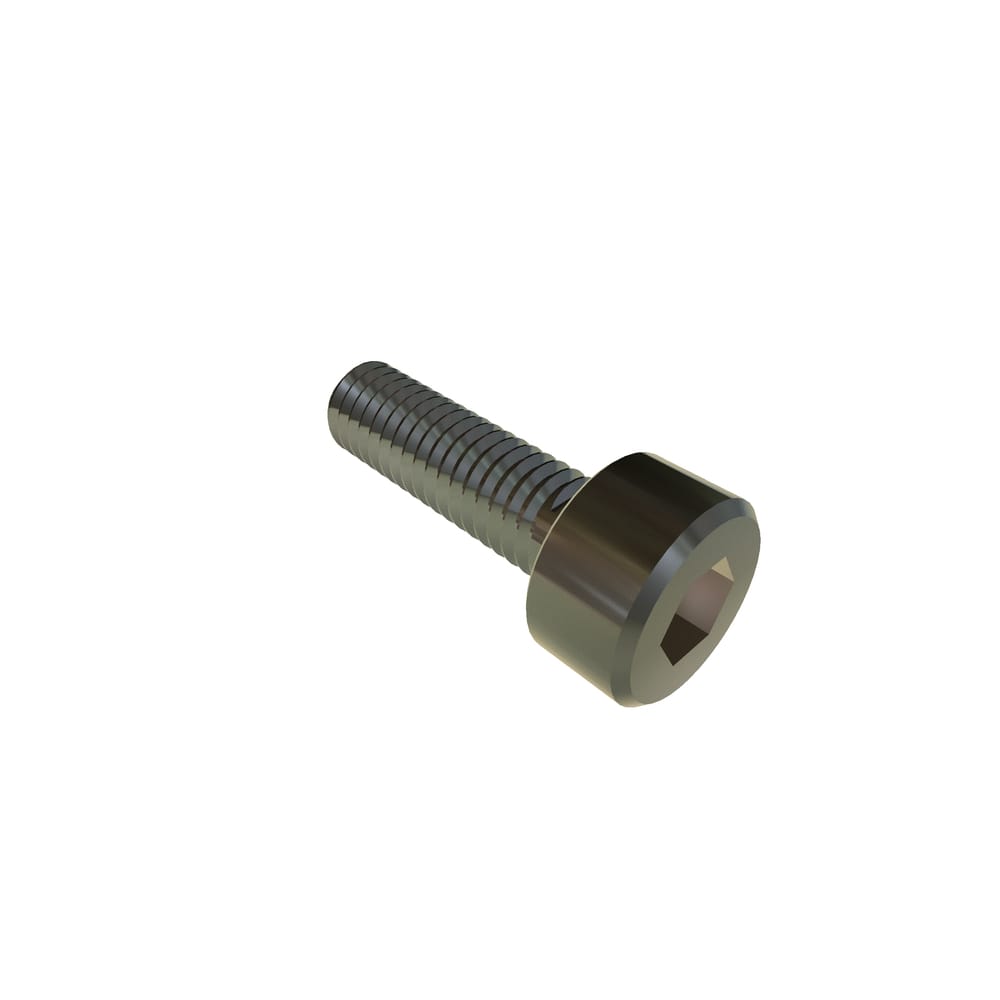

M3-.5 X 10 SOC CAP 12.9 ALLOY NICKEL PLT
.3C10SHCAN
| Item Id | .3C10SHCAN |
| Description | M3-.5 X 10 SOC CAP 12.9 ALLOY NICKEL PLT |
| Extended Description | RoHS |
| Packaging | EA |
| Body Diameter (Max.) | 3.00 mm |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Finish | Nickel |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.32 mm |
| Head Height (Max.) | 3.00 mm |
| Head Height (Min.) | 2.89 mm |
| Head Type | Socket |
| Hex Socket Size | 2.50 mm |
| Key Engagement (Min.) | 1.50 mm |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.3.1M |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
