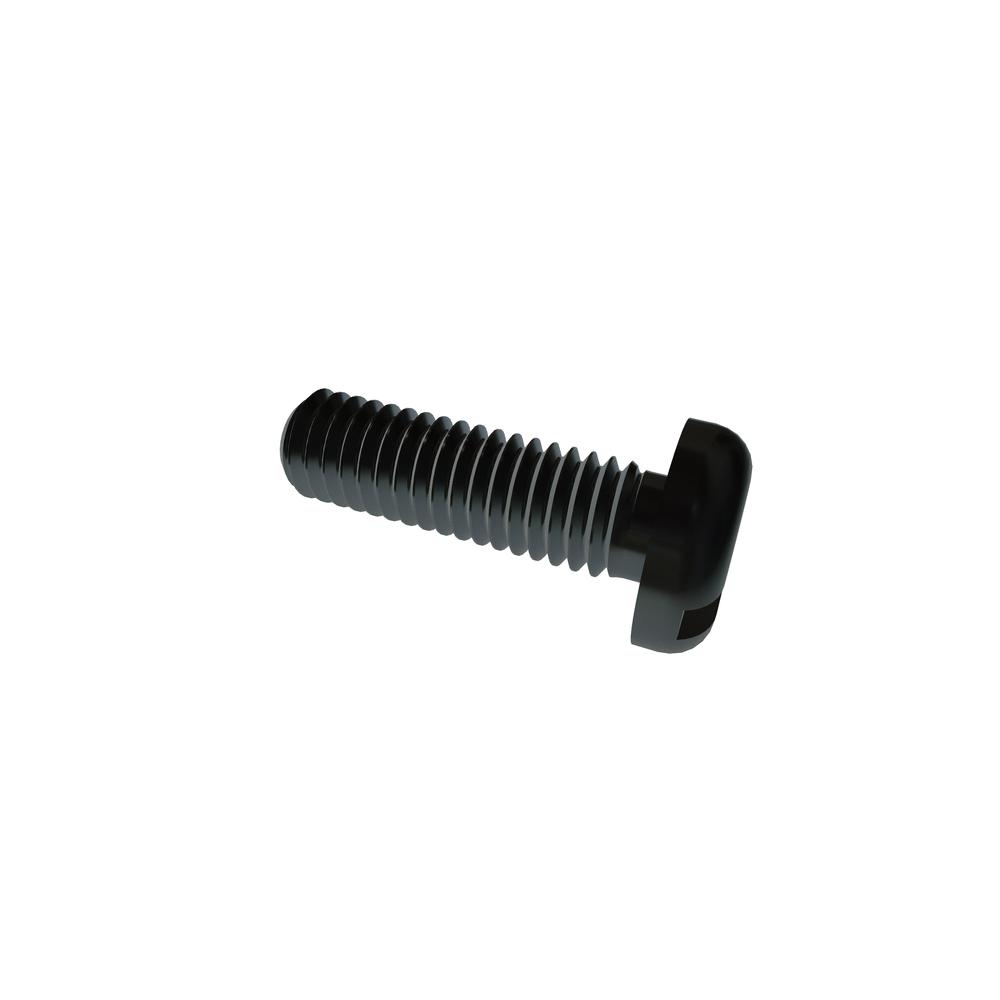

Image for reference purposes only. Actual product may vary.
.3C10SPMZR
M3-.5 X 10 SLOT PAN HD STL ZN CR3
Alternate Codes: N/A
M3-.5 X 10 Slot Pan Head Head Steel Zinc Plated RoHS3
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|
| $0.038 | $0.023 | $0.017 | $0.013 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 10mm |
| Thread Size | M3x0.5 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Slotted |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Head Radius (Min.) | 1.20 mm |
| Slot Depth (Min.) | 0.70 mm |
| Slot Width (Min.) | 0.80 mm |
| Slot Width (Max.) | 1.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Additional Industry Cross Reference | 90353A144 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.00 mm |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 1.80 mm |
| Head Height (Min.) | 1.60 mm |
