.3C10XFMS/P

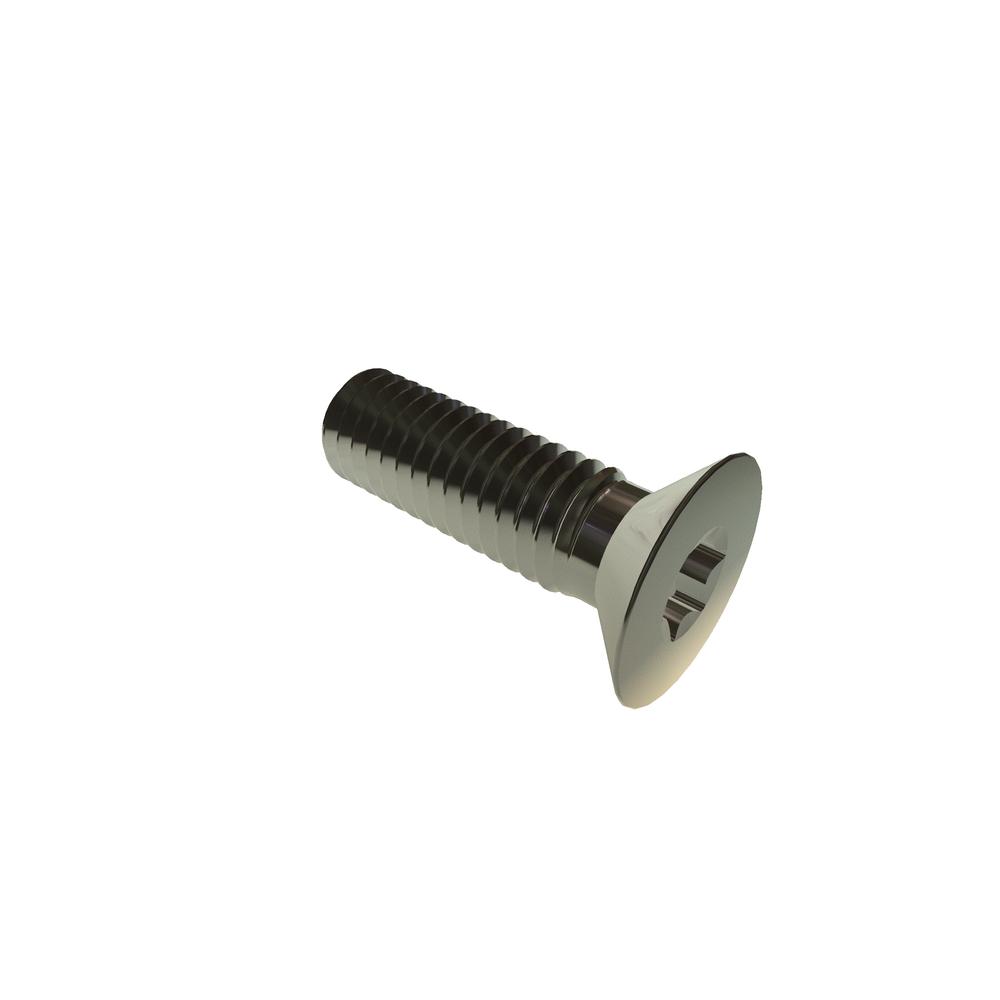

M3-.5 X 10 TORX FLAT PATCH SST RoHS
Alternate Codes: N/A
ISO 14581
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.594 | $0.378 | $0.347 | $0.320 | $0.270 | Larger Quantities |
In Stock
| Thread Size | M3x0.5 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Flat |
| Locking Element | Patchlock |
| Drive Type | Torx |
| Drive Size | T10 |
| Recess Diameter | 2.80 mm |
| Head Height | 1.65 mm |
| Recess Depth (Min.) | 0.70 mm |
| Recess Depth (Max.) | 0.7 mm |
| Brand | VARIED |
| Length | 10mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 14581 |
| Head Diameter (Max.) | 6.30 mm |
| Head Diameter (Min.) | 5.20 mm |
