  • Item Id: .3C10XPCS

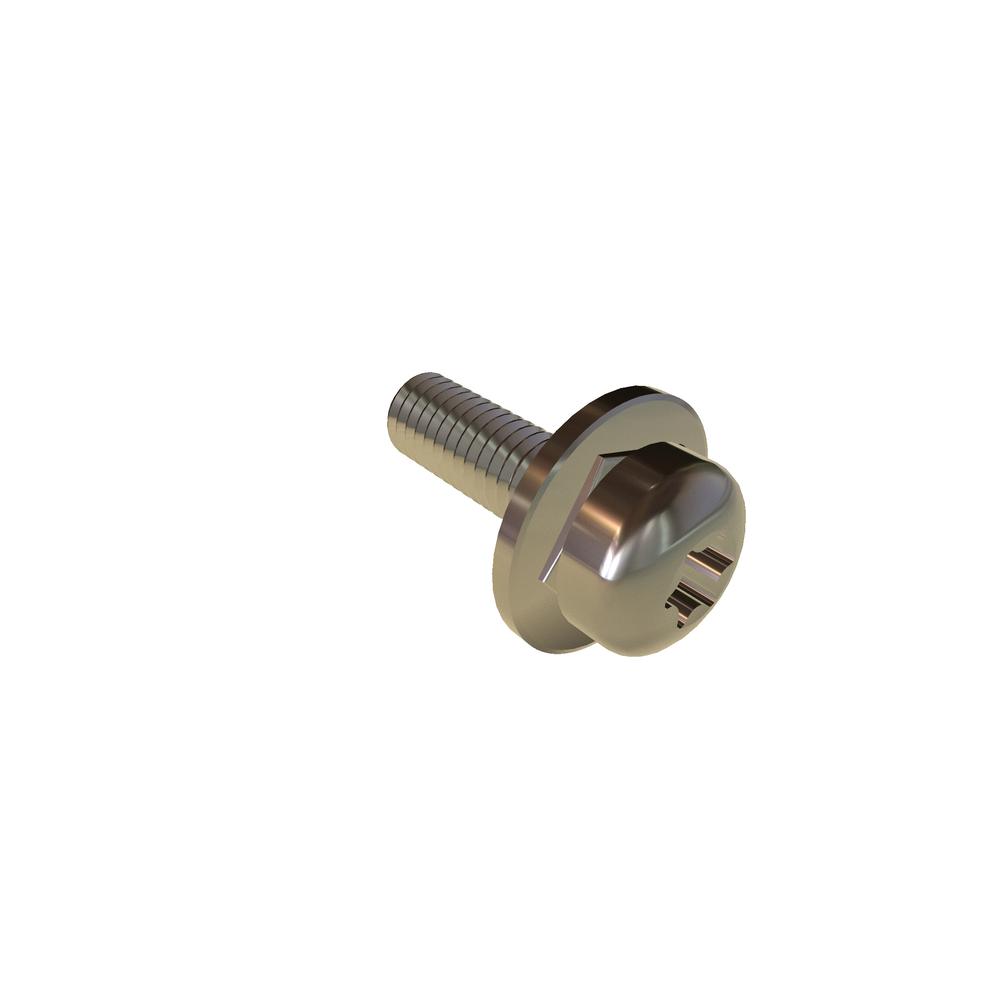

  • Description: M3-.5 X 10 TORX PAN CREST CUP SEMS SST
  • Alternate Codes: 3BT-P8050-00 INFASTECH
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.606$0.386$0.354$0.326Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • BrandVARIED
    Drive SizeT10
    Drive TypeTorx
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Lock Washer Height (Max.)1.26 mm
    Lock Washer Height (Min.)0.76 mm
    Lock Washer Outside Diameter (Max.)6.35 mm
    Lock Washer Outside Diameter (Min.)6.20 mm
    Lock Washer Thickness (Max.)0.63 mm
    Lock Washer Thickness (Min.)0.38 mm
    MaterialStainless Steel
    Meets (Standard)ISO 14583
    Nominal Diameter3.00 mm
    Penetration Depth (Max.)1.27 mm
    Penetration Depth (Min.)1.01 mm
    Recess Diameter2.74 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeCrest Cup Washer
