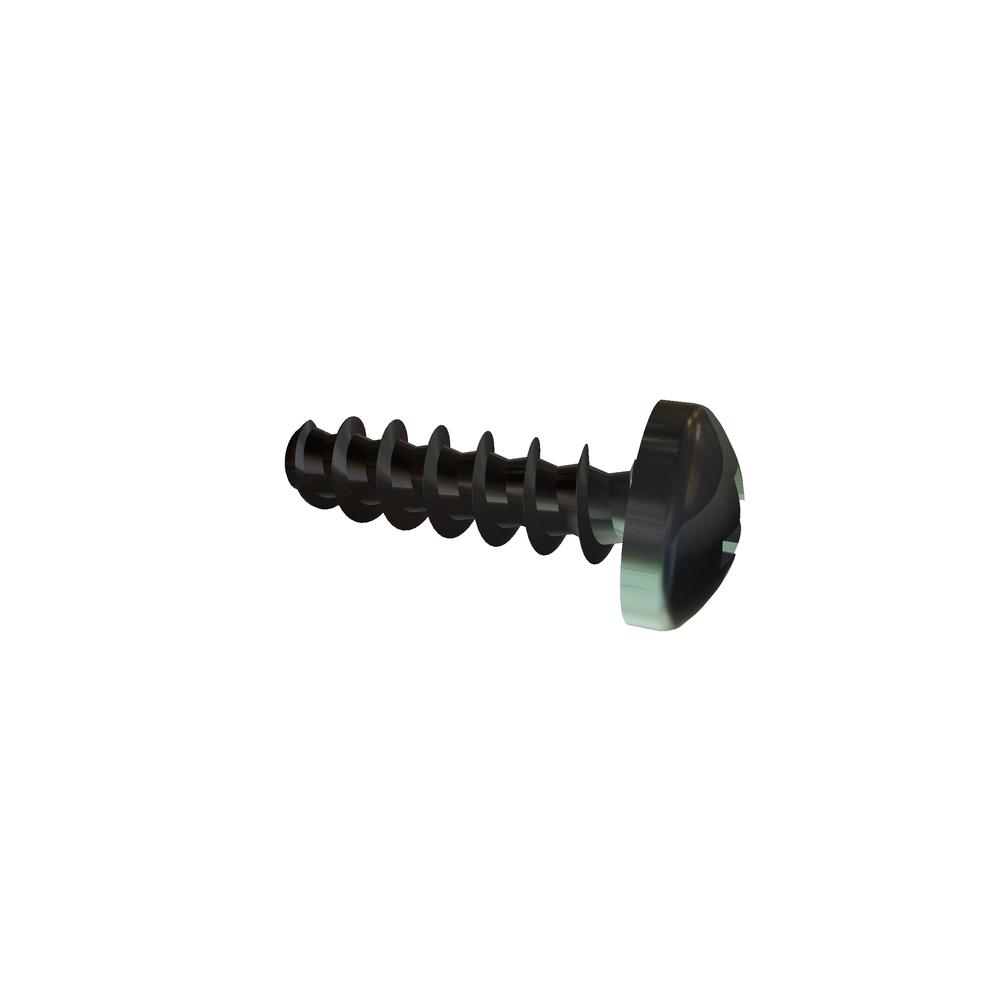

.3C10ZPTS
M3 X 10 PT-PAN HD SCR PHIL T-F SST
Alternate Codes: N/A
"""TAPTITE EQUIVALENT"" RoHS"
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|---|
| $0.170 | $0.102 | $0.085 | $0.070 | $0.062 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M3 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | PT Thread |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Recess Diameter | 2.90 mm |
| Head Radius (Min.) | 5.00 mm |
| Nominal Thread Size | M3 |
| Recess Depth | 1.76 mm |
| Recess Width | 0.74 mm |
| Brand | VARIED |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
