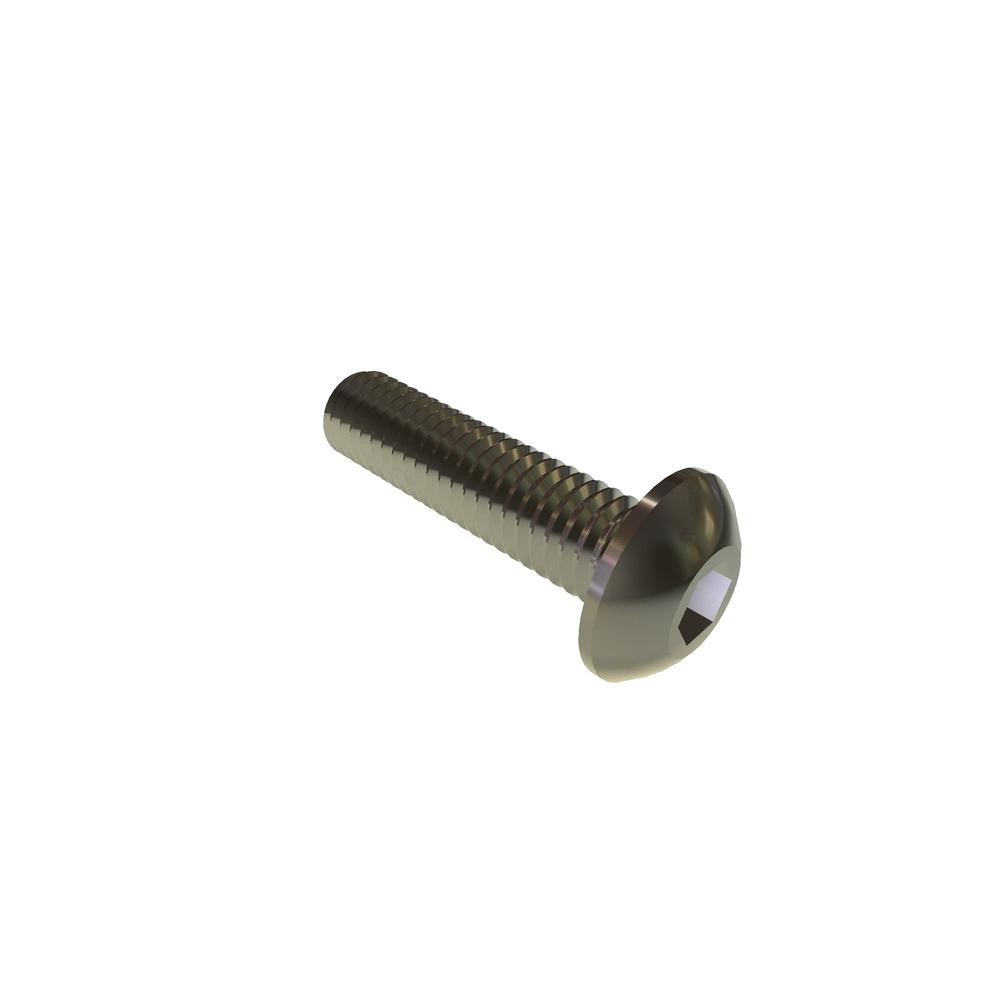

M3-.5 X 12 BUT SOC PATCHLK SST RoHS
.3C12BHCS/P
| Item Id | .3C12BHCS/P |
| Description | M3-.5 X 12 BUT SOC PATCHLK SST RoHS |
| Alternate Codes | 93310A804 |
| Extended Description | M3-.5 X 12 Button head Socket with PATCH Stainless Steel RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 93310A804 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 3.60 mm |
| Fillet Transition Diameter (Min.) | 3.20 mm |
| Finish | Plain |
| Head Diameter (Max.) | 5.70 mm |
| Head Diameter (Min.) | 5.40 mm |
| Head Height (Max.) | 1.65 mm |
| Head Height (Min.) | 1.43 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Head Type | Button |
| Hex Socket Size | 2.00 mm |
| Key Engagement (Min.) | 1.04 mm |
| Length | 12mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3 |
| Nominal Diameter | 3 mm |
| RoHS | Compliant |
| Self Locking Type | Patchlock |
| Thread Size | M3-.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
