  • Item Id: .3C12PFM3

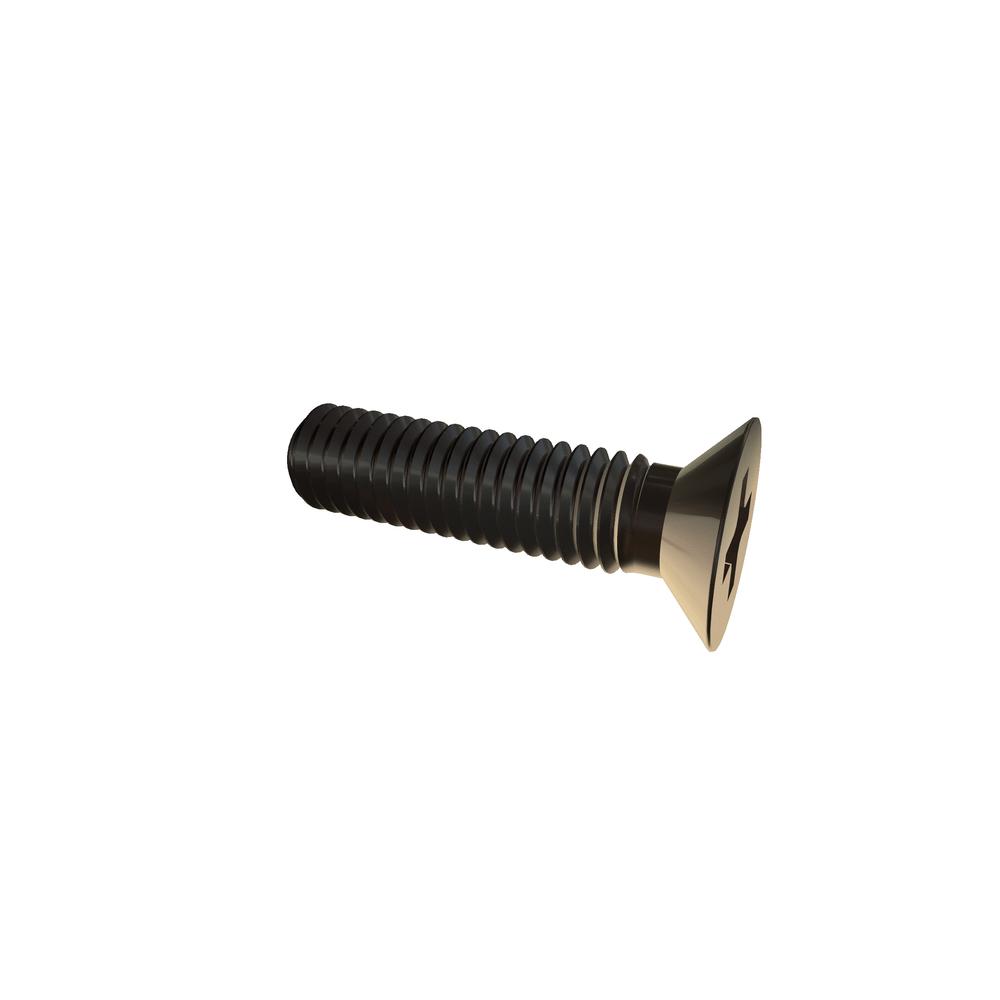

  • Description: M3-.5 X 12 PHIL FLAT 316 SST RoHS
  • Alternate Codes: 91801A158
  • Quantity Discounts:
    1 to 499500 to 9991000 to 24992500 to 4999Call For
    $0.130$0.080$0.058$0.044Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference91801A158
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.50 mm
    Head Diameter (Min.)5.20 mm
    Head Height1.70 mm
    Head TypeFlat
    Material316 Stainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth2.08 mm
    Recess Diameter3.10 mm
    Recess Width0.79 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
