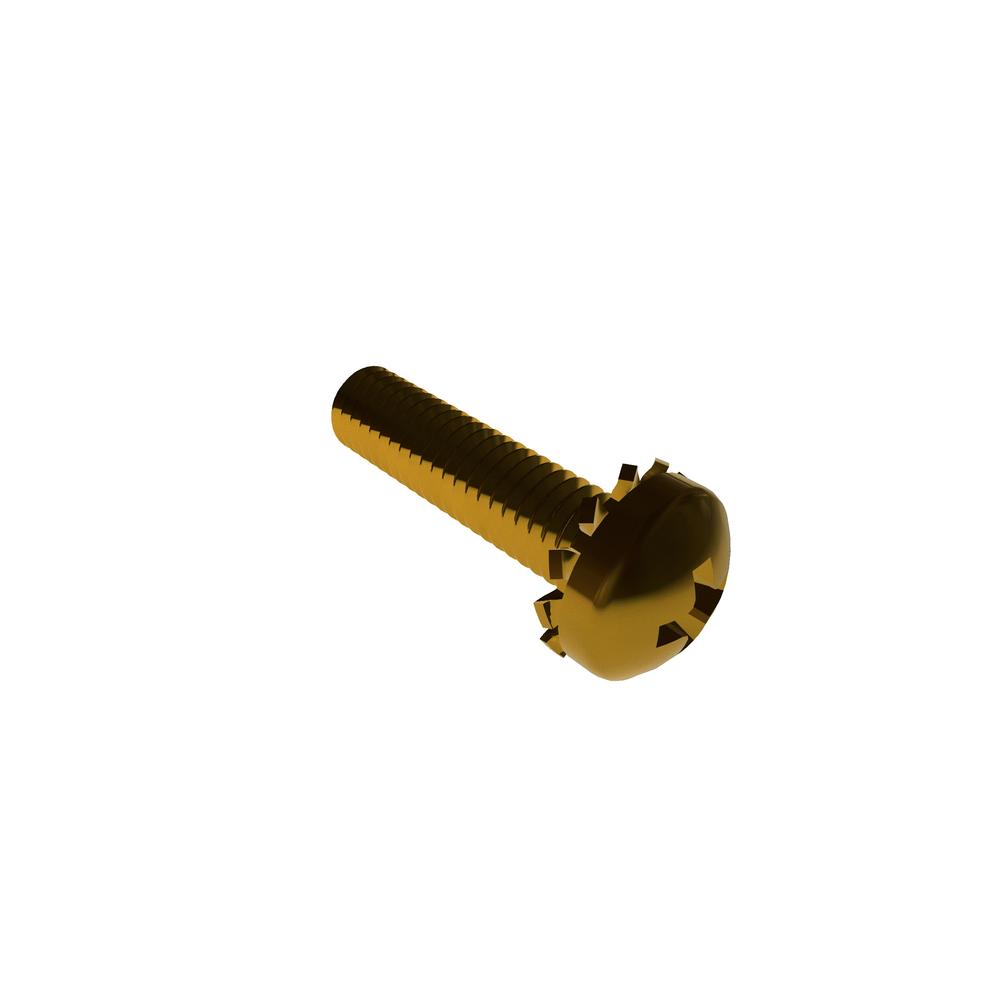

.3C12PPEZYR
M3-.5 X 12 PHIL PAN EXT SEMS STL ZN YLW
Alternate Codes: .3C12PPEZ/Y
RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M3x0.5 |
| Material | Steel |
| Finish | Zinc Yellow |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Thickness (Max.) | 0.45 mm |
| Lock Washer Outside Diameter (Min.) | 5.45 mm |
| Lock Washer Outside Diameter (Max.) | 5.85 mm |
| Washer Type | External Tooth Lock Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Recess Diameter | 2.90 mm |
| Head Radius (Min.) | 5.00 mm |
| Brand | VARIED |
| Length | 12mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Lock Washer Thickness (Min.) | 0.30 mm |
