  • Item Id: .3C12PPMZR

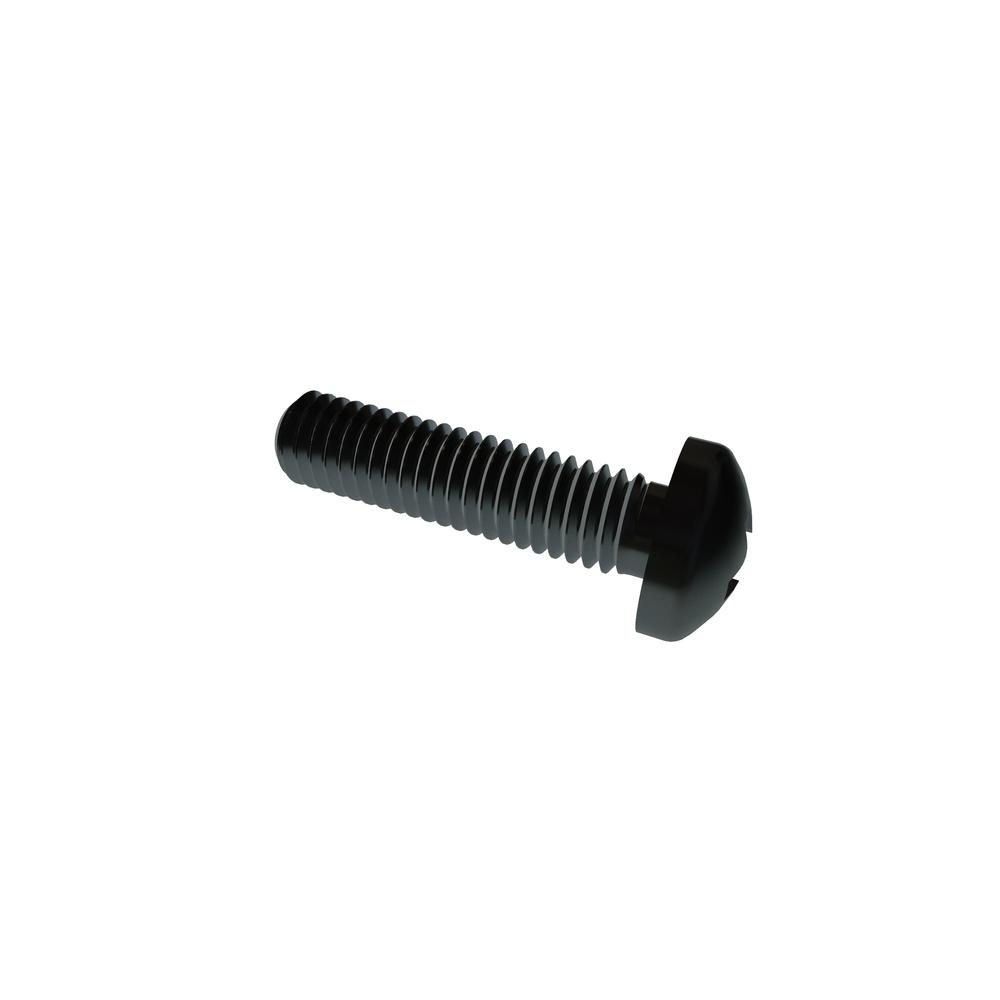

  • Description: M3-.5 X 12 PH PAN STL ZN
  • Alternate Codes: .3C12PPMZZ/R, 1900-0018, 232-0020-09, 574-10003-12, 60126, 92005A122, BN384 M3X12
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.128$0.077$0.064$0.052Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92005A122 92005A122
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Clear
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C12PPMNM3-.5 X 12 PH PAN NYLView Details
.3C12PPMSM3-.5 X 12 PH PAN DIN7985 SSTView Details
.3C12PPMS/PM3-.5 X 12 PH PAN PATCH SST RoHSView Details
.3C12PPMS/VM3-.5 X 12 PH PAN VNT SST RoHSView Details
.3C12PPMZBM3-.5 X 12 PH PAN STL BLK RoHSView Details
