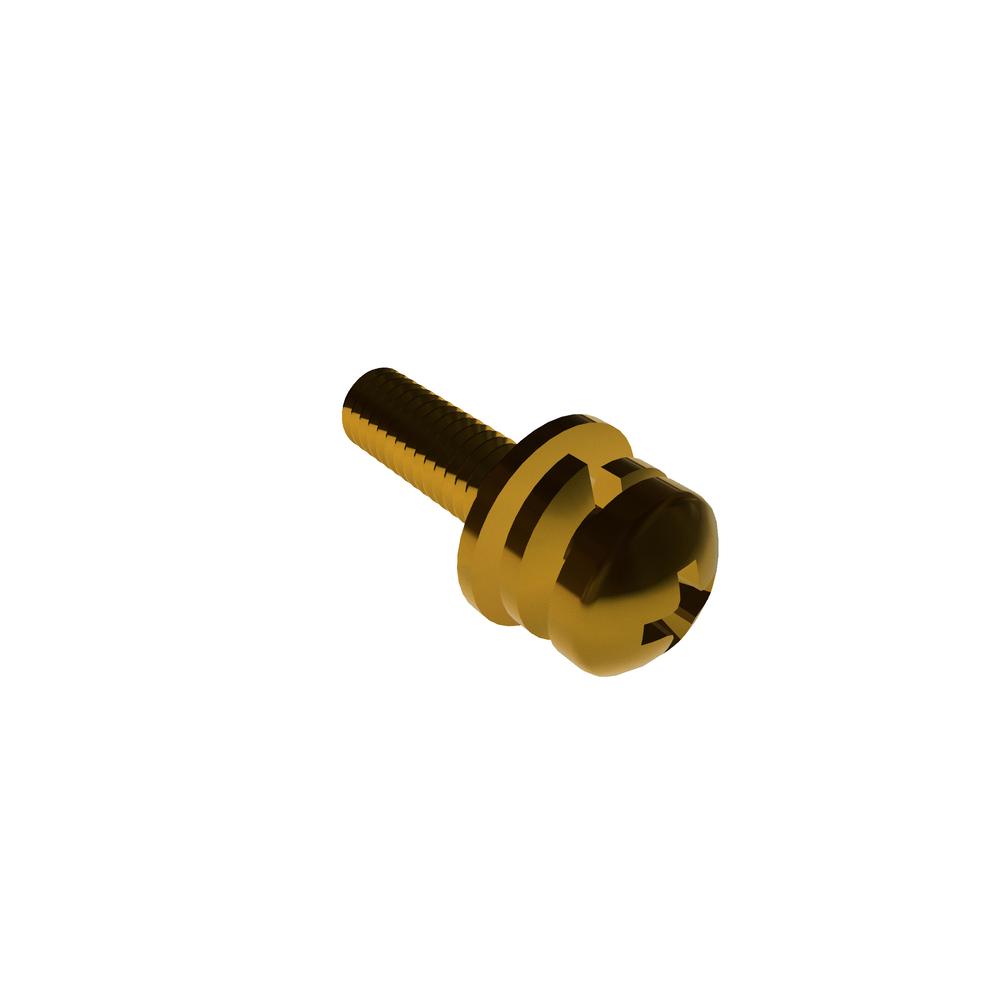

M3-.5 X 12 PH PAN DBL SEM SL/FW Non-RoHS
.3C12PPSZY-NONROHS
| Item Id | .3C12PPSZY-NONROHS |
| Description | M3-.5 X 12 PH PAN DBL SEM SL/FW Non-RoHS |
| Alternate Codes | .3C12PPSZY, .3C12PPSZY -NONROHS |
| Extended Description | Steel Yellow Zinc |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Yellow |
| Flat Washer Outside Diameter (Min.) | 10.00 mm |
| Flat Washer Outside Diameter Max | 9.64 mm |
| Flat Washer Thickness (Max.) | 0.80 mm |
| Flat Washer Thickness (Min.) | 1.20 mm |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Length | 12mm |
| Lock Washer Inside Diameter (Max.) | 2.84 mm |
| Lock Washer Inside Diameter (Min.) | 2.69 mm |
| Lock Washer Outside Diameter (Max.) | 5.73 mm |
| Lock Washer Outside Diameter (Min.) | 5.49 mm |
| Lock Washer Thickness (Min.) | 1.02 mm |
| Lock Washer Width (Min.) | 1.40 mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Penetration Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Split Lock Washer and Flat Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
