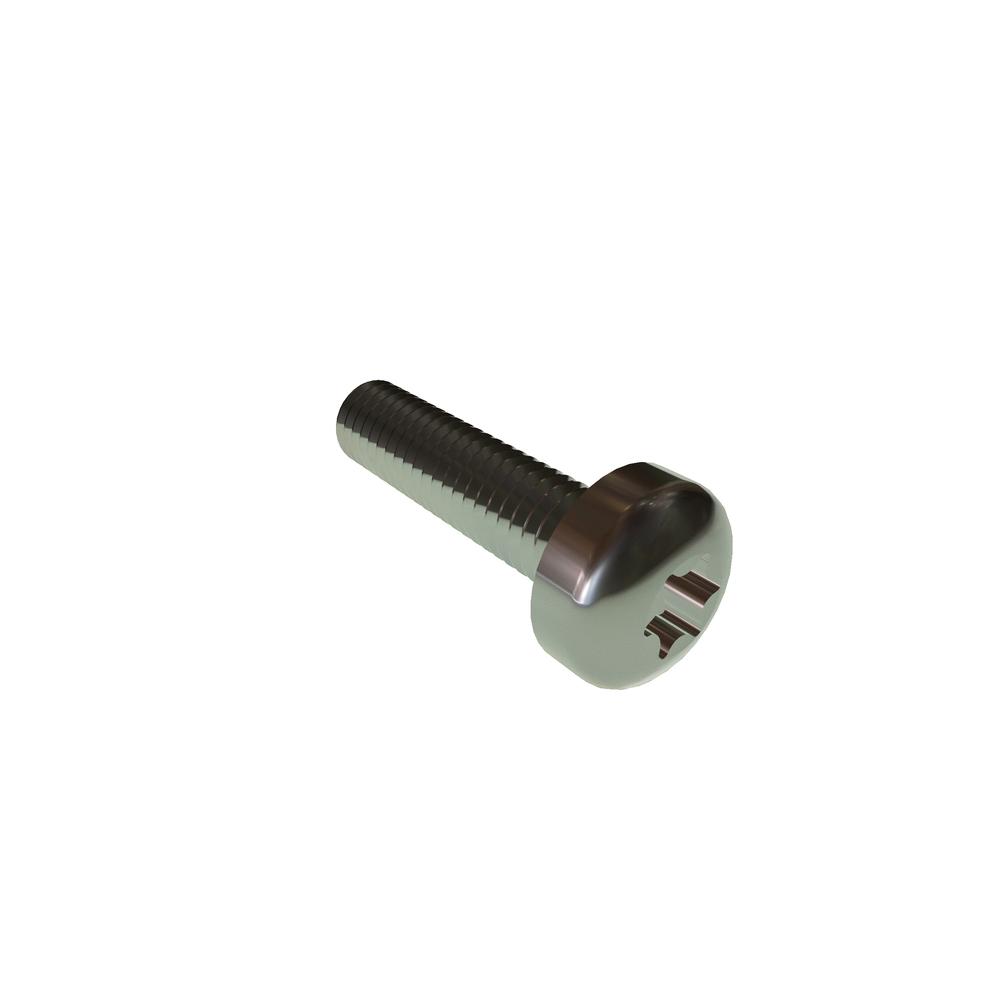

M3-.5 X 12 TORX PAN SST RoHS
.3C12XPMS
| Item Id | .3C12XPMS |
| Description | M3-.5 X 12 TORX PAN SST RoHS |
| Alternate Codes | 90362A116 |
| Extended Description | ISO 14583 |
| Packaging | EA |
| Additional Industry Cross Reference | 90362A116 |
| Brand | VARIED |
| Drive Size | T10 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26 mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Length | 12mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 3.00 mm |
| Recess Depth (Max.) | 1.27 mm |
| Recess Depth (Min.) | 1.01 mm |
| Recess Diameter | 2.74 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
