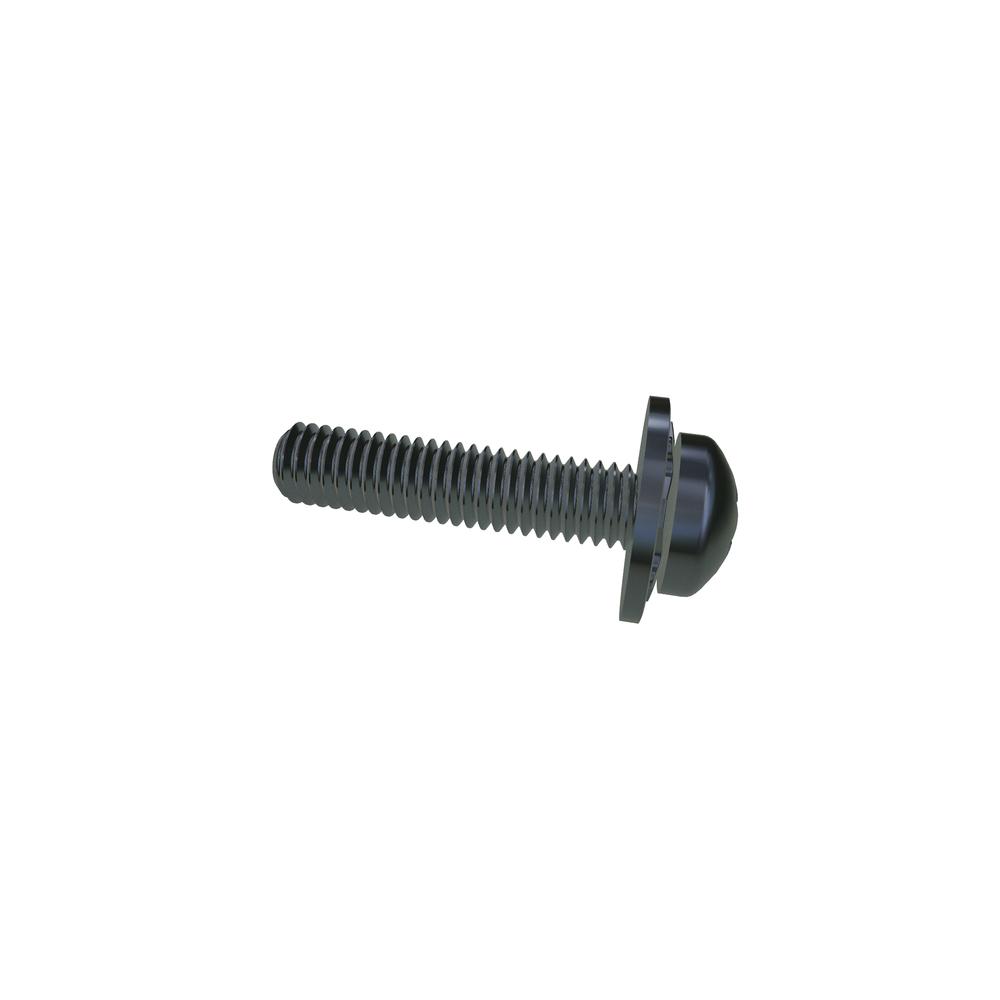

Image for reference purposes only. Actual product may vary.
.3C14PPQZR
M3-.5 X 14 PH PN SQ CONE SEMS STL ZN CR3
Alternate Codes: N/A
M3-.5 X 14 Phillips Pan Square Cone Sems Steel Zinc Plated RoHS3
Pricing per Unit
| 1-99 pcs |
|---|
| $0.364 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 14mm |
| Thread Size | M3x0.5 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 2.90 mm |
| Washer Type | Square Cone Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Height (Min.) | 0.99 mm |
| Lock Washer Height (Max.) | 1.55 mm |
| Lock Washer Outside Diameter (Min.) | 7.52 mm |
| Lock Washer Outside Diameter (Max.) | 7.82 mm |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Head Radius (Min.) | 5.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Lock Washer Thickness (Min.) | 0.64 mm |
