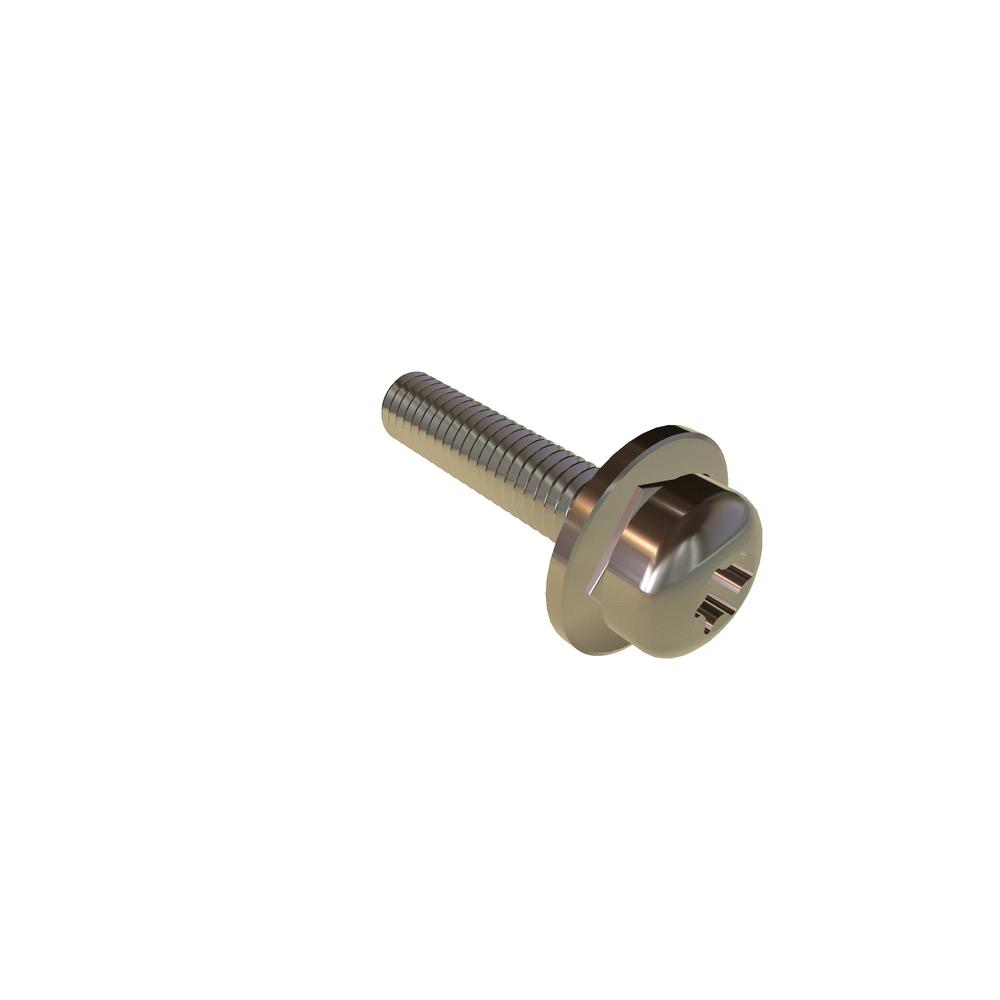

Image for reference purposes only. Actual product may vary.
.3C14XPCS
M3-.5 X 14 TORX PAN CREST CUP SEMS SST
Alternate Codes: N/A
M3-.5 X 14 Torx Drive Pan Head Crest Cup Sems Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.743 | $0.473 | $0.434 | $0.400 | $0.338 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 14mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Recess Diameter | 2.74 mm |
| Washer Type | Crest Cup Washer |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.63 mm |
| Lock Washer Height (Min.) | 0.76 mm |
| Lock Washer Height (Max.) | 1.26 mm |
| Lock Washer Outside Diameter (Min.) | 6.20 mm |
| Lock Washer Outside Diameter (Max.) | 6.35 mm |
| Drive Size | T10 |
| Penetration Depth (Min.) | 1.01 mm |
| Penetration Depth (Max.) | 1.27 mm |
| Head Radius (Min.) | 5.00 mm |
| Lock Washer Thickness (Min.) | 0.38 mm |
