  • Item Id: .3C16PPMN

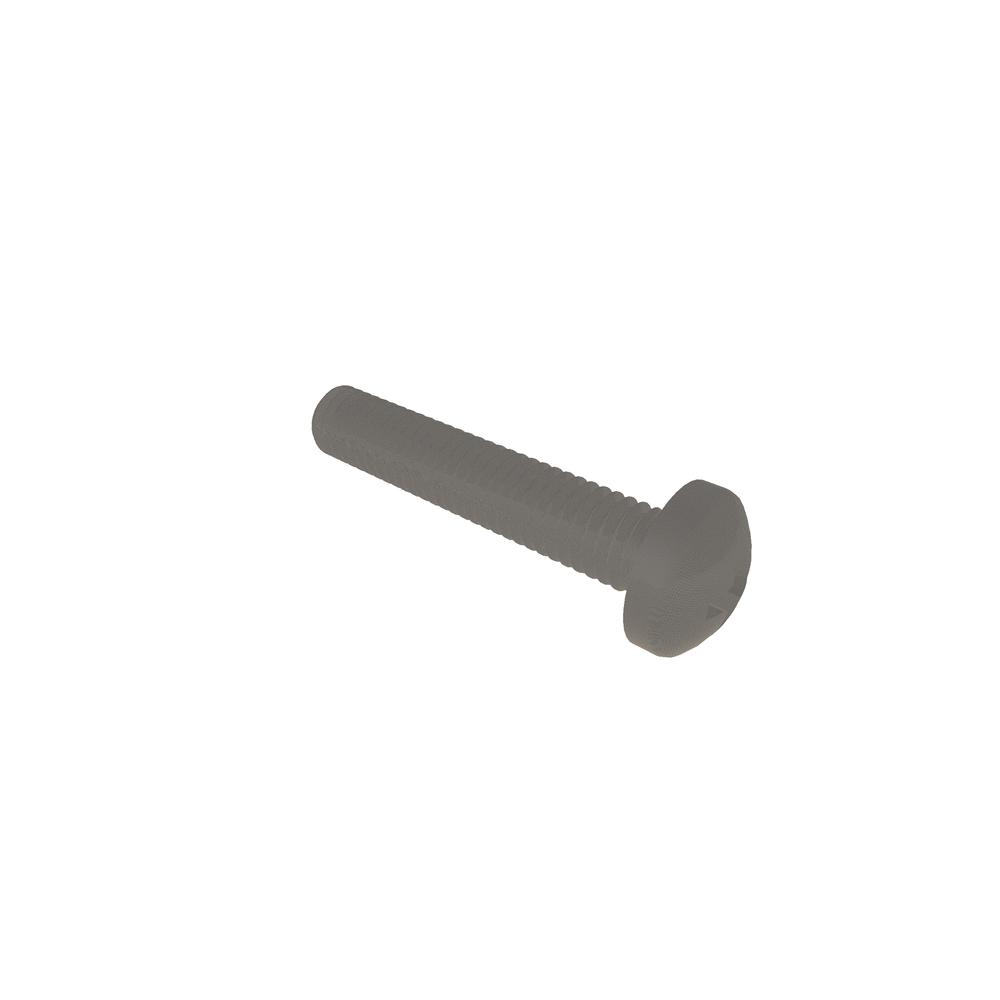

  • Description: M3-.5 X 16 PH PAN NYL
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.159$0.096$0.080$0.065Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92492A721
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialNylon
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C16PPMSM3-.5 X 16 PH PAN SSTView Details
.3C16PPMS/SEELM3-.5 X 16 PH PAN SEELSKREW SST RoHSView Details
.3C16PPMZBM3-.5 X 16 PH PAN STL BLKView Details
.3C16PPMZRM3-.5 X 16 PH PAN STL ZNView Details
