Image for reference purposes only. Actual product may vary.
.3C16ZPMS
M3-.5 X 16 POZI PAN SST RoHS
Alternate Codes: N/A

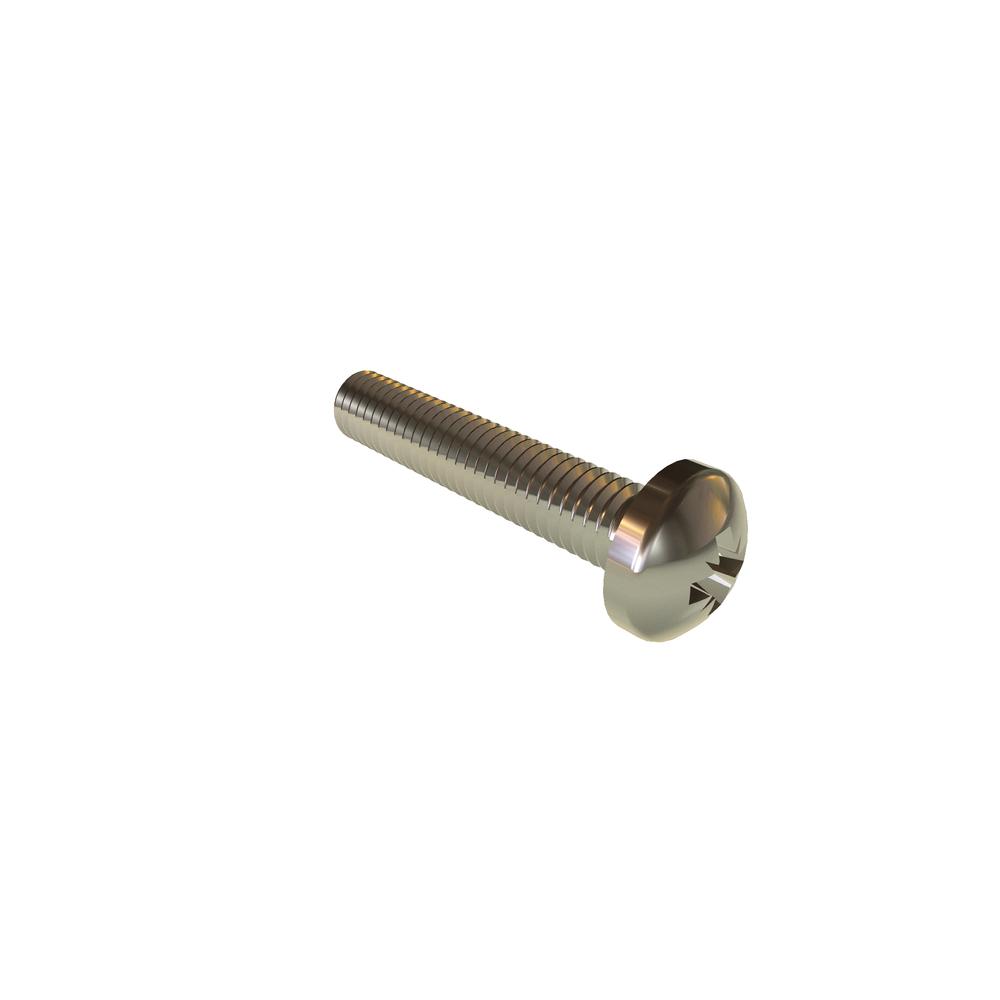

M3-.5 X 16 Pozi Drive Pan Head Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 16mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Pozi |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Drive Size | 1 |
| Recess Diameter | 2.86 mm |
| Head Radius (Min.) | 5.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Recess Depth | 1.83 mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.00 mm |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26mm |
