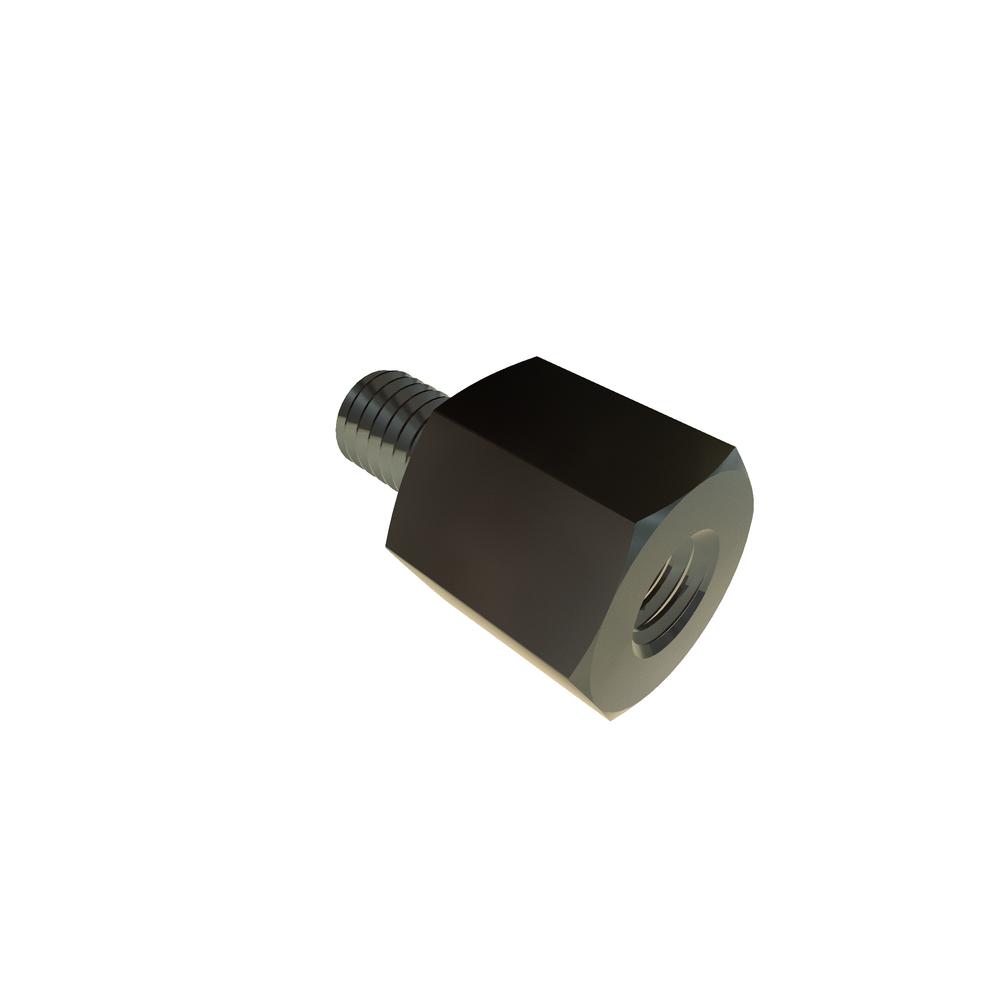

M3-.5 X 20 X 5.5mm HX M/F BRASS NI RoHS
.3C20H5MBN
| Item Id | .3C20H5MBN |
| Description | M3-.5 X 20 X 5.5mm HX M/F BRASS NI RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Finish | Nickel |
| Hex Width | 5.50 mm |
| Length | 20mm |
| Male Thread Length | 4.76 mm |
| Material | Brass |
| Nominal Diameter | 3.00 mm |
| Thread Depth (Min.) | 6.35 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
