  • Item Id: .3C20SPMS

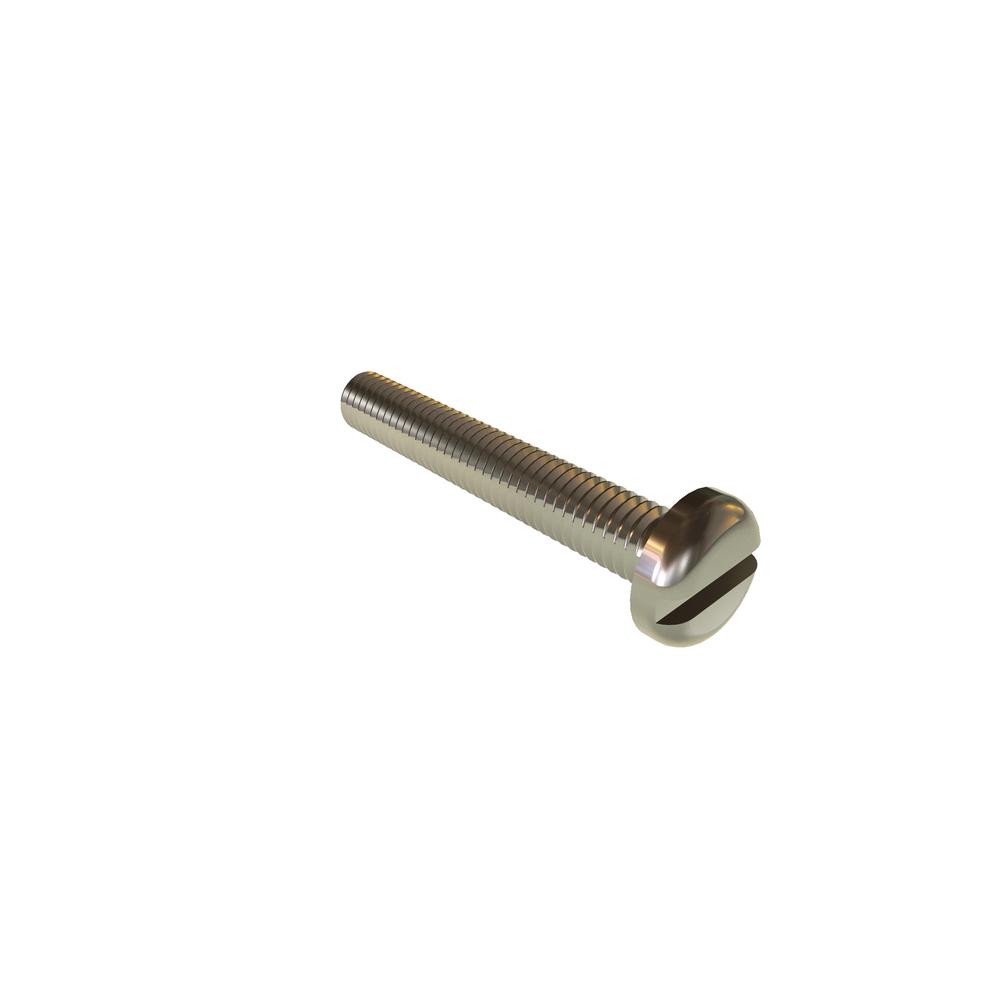

  • Description: M3-.5 X 20 SLOT PAN HD SST RoHS
  • Alternate Codes: 2601-5200-020
  • Quantity Discounts:
    1 to 499500 to 9991000 to 24992500 to 4999Call For
    $0.000$0.000$0.000$0.000Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Additional Industry Cross Reference91200A122
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive TypeSlotted
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)1.80 mm
    Head Height (Min.)1.60 mm
    Head Radius (Min.)1.20 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    RoHSCompliant
    Slot Depth (Min.)0.70 mm
    Slot Width (Max.)1.00 mm
    Slot Width (Min.)0.80 mm
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C20SPMNM3-.5 X 20 SLOT PAN HD NYLView Details
