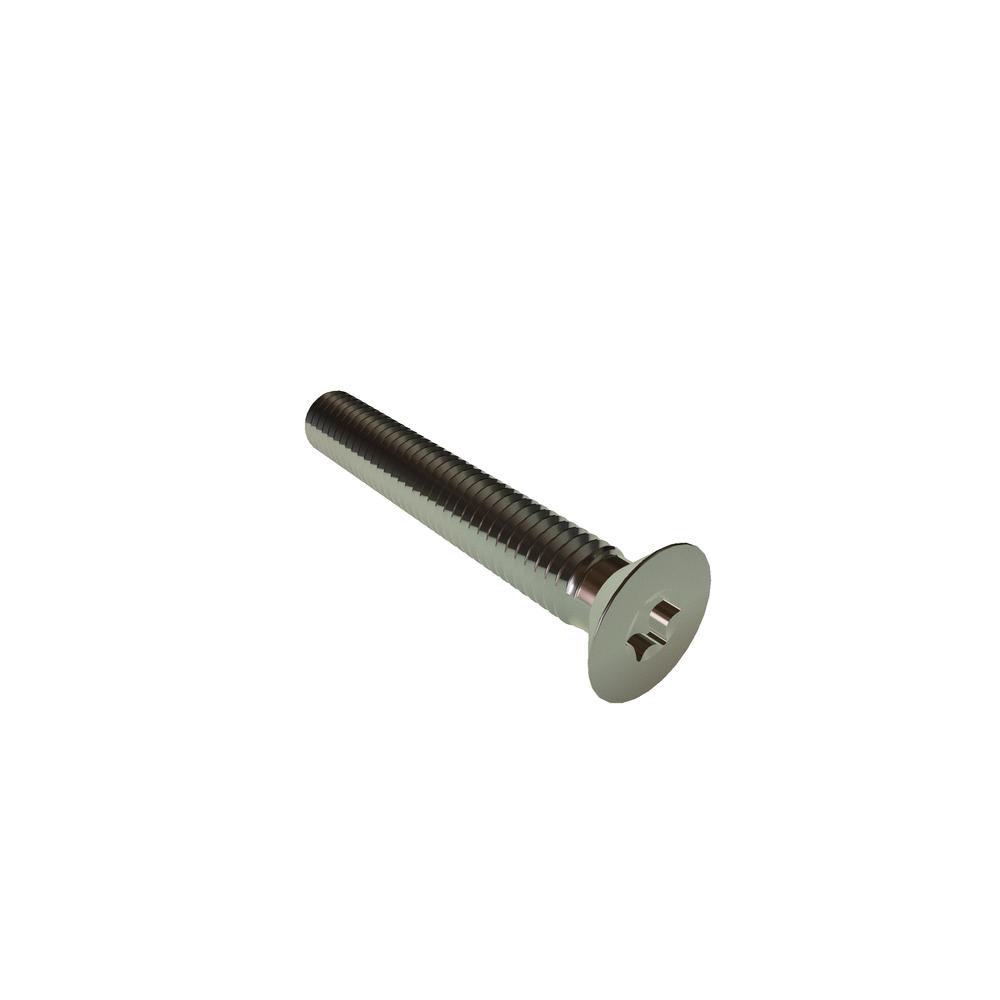

M3-.5 X 20 TORX FLAT SST
.3C20XFMS
| Item Id | .3C20XFMS |
| Description | M3-.5 X 20 TORX FLAT SST RoHS |
| Extended Description | ISO 14581 |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T10 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
| Head Height | 1.65 mm |
| Head Type | Flat |
| Length | 20mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14581 |
| Nominal Diameter | 3.00 mm |
| Recess Depth (Max.) | 0.7 mm |
| Recess Depth (Min.) | 0.70 mm |
| Recess Diameter | 2.80 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
