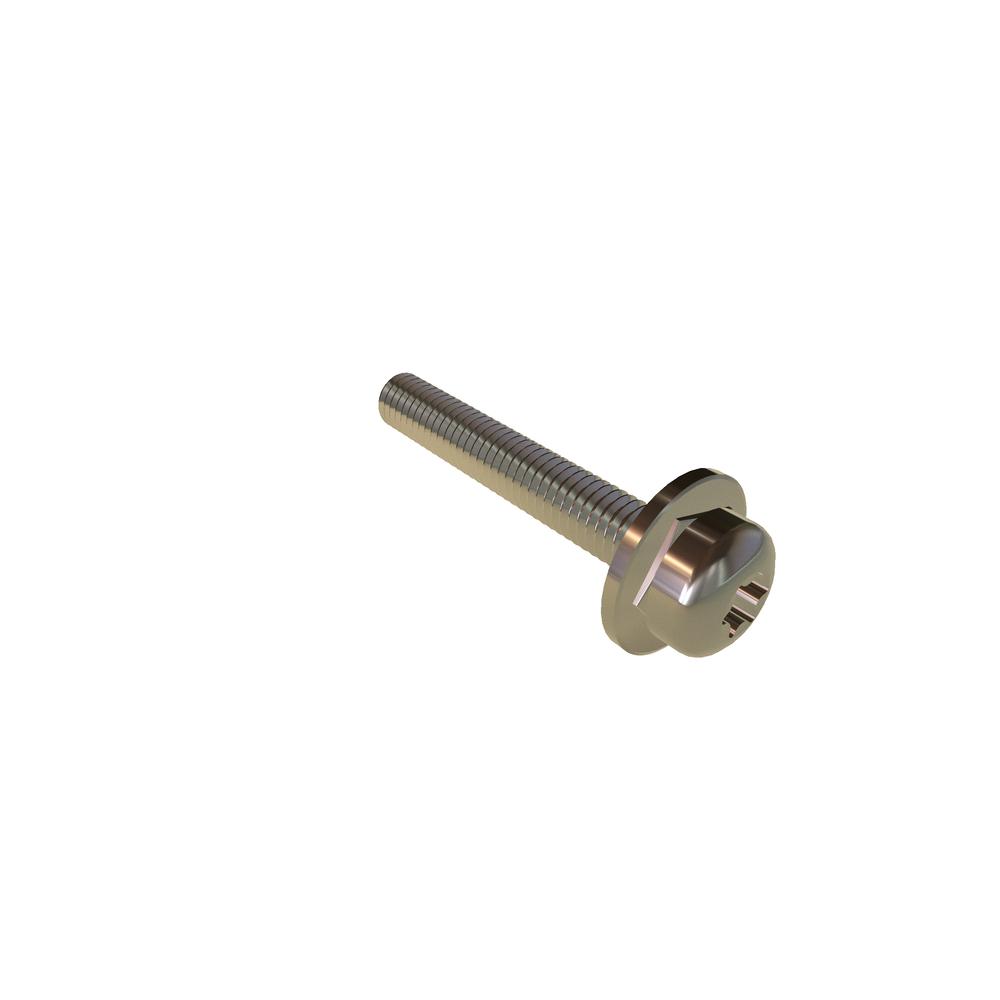

Image for reference purposes only. Actual product may vary.
.3C20XPCS
M3-.5 X 20 TORX PAN CREST CUP SEMS SST
Alternate Codes: N/A
M3-.5 X 20 Torx Drive Pan Head Crest Cup Sems Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.069 | $0.680 | $0.625 | $0.576 | $0.486 | Larger Quantities |
In stock
| Length | 20mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| RoHS | Compliant |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26 mm |
