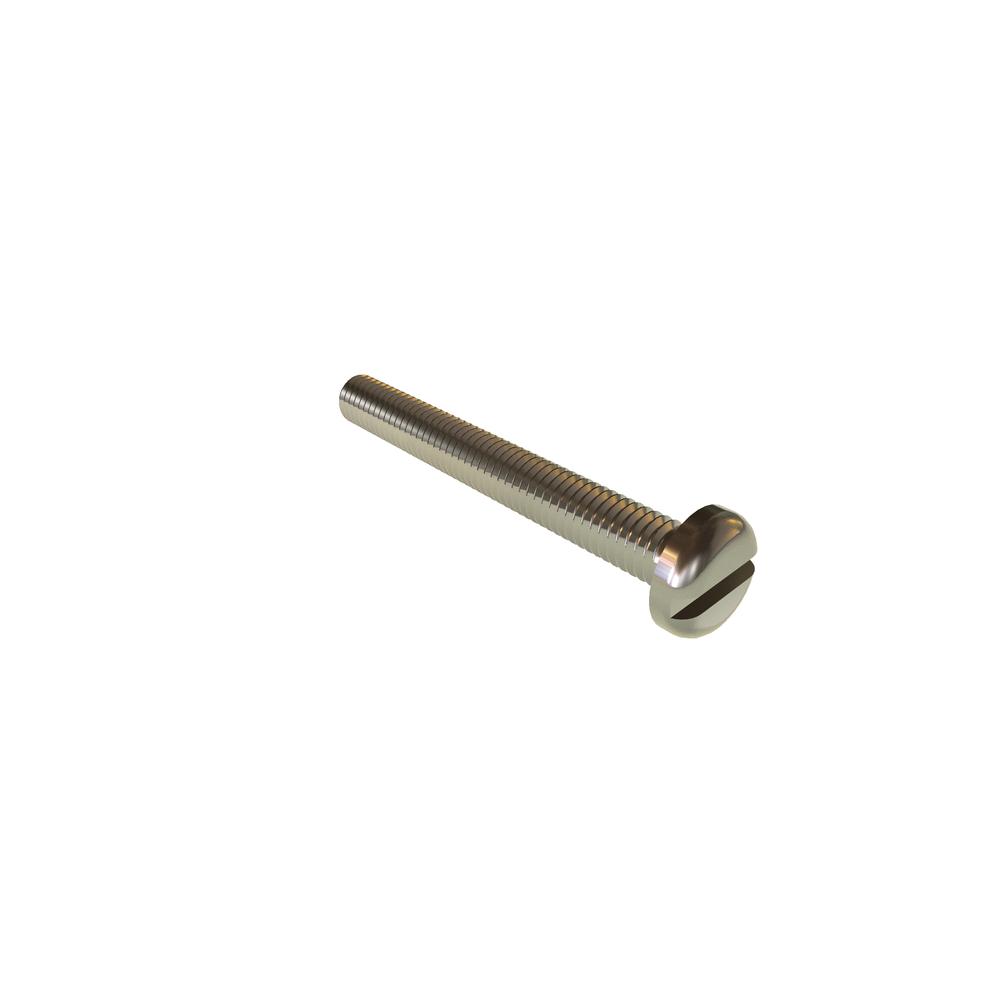

.3C25SPMS
M3-.5 X 25 SLOT PAN HD SST RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M3x0.5 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Drive Type | Slotted |
| Head Radius (Min.) | 1.20 mm |
| Slot Depth (Min.) | 0.70 mm |
| Slot Width (Min.) | 0.80 mm |
| Slot Width (Max.) | 1.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 91200A124 |
| Length | 25mm |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.00 mm |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 1.80 mm |
| Head Height (Min.) | 1.60 mm |
