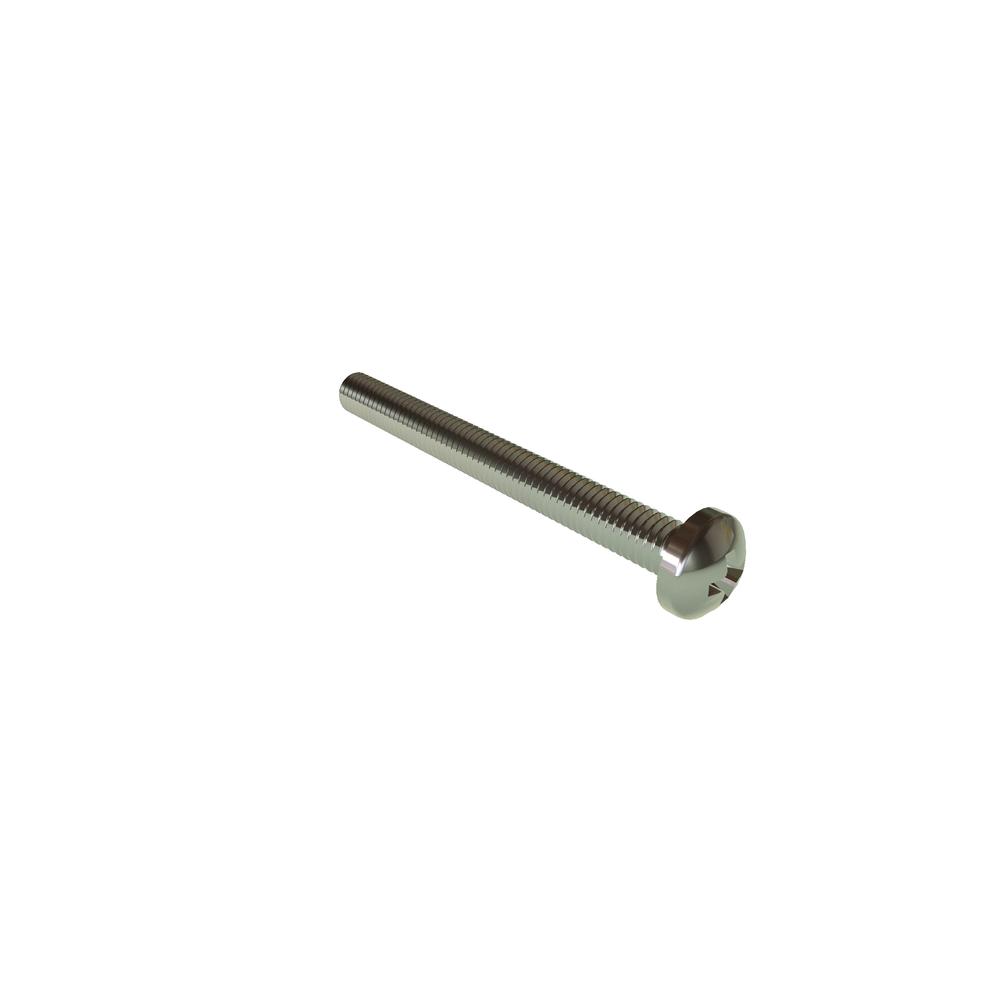

Image for reference purposes only. Actual product may vary.
.3C30PPMS
M3-.5 X 30 PH PAN SST RoHS
Alternate Codes: 92000A132
M3-.5 X 30 Phillips Pan DIN7985 Head Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.287 | $0.151 | $0.120 | $0.110 | $0.093 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Drive Size | 1 |
| Recess Diameter | 2.90 mm |
| Head Radius (Min.) | 5.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Depth (Max.) | 1.80 mm |
| Additional Industry Cross Reference | 92000A132 92000A132 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.00 mm |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26mm |
