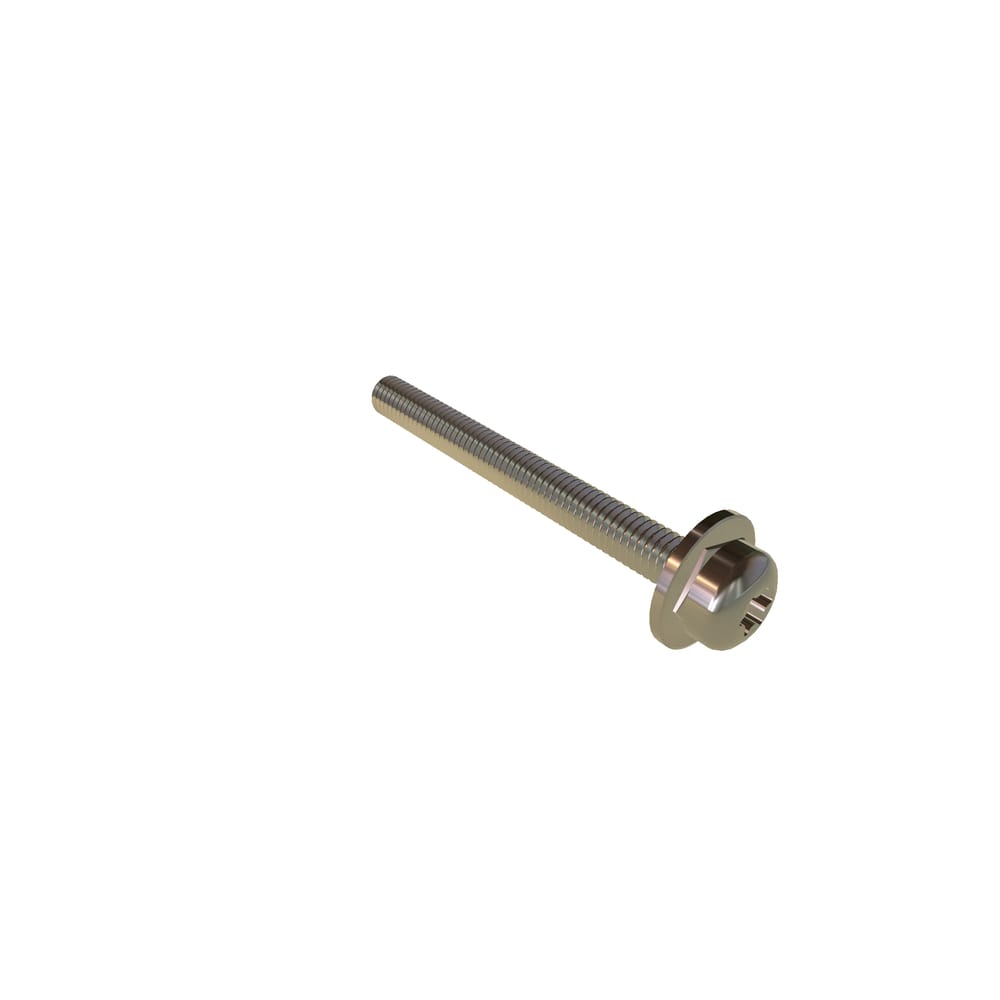

M3-.5 X 30 TORX PAN CREST CUP SEMS SST
.3C30XPCS
| Item Id | .3C30XPCS |
| Description | M3-.5 X 30 TORX PAN CREST CUP SEMS SST |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T10 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26 mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Length | 30mm |
| Lock Washer Height (Max.) | 1.26 mm |
| Lock Washer Height (Min.) | 0.76 mm |
| Lock Washer Outside Diameter (Max.) | 6.35 mm |
| Lock Washer Outside Diameter (Min.) | 6.20 mm |
| Lock Washer Thickness (Max.) | 0.63 mm |
| Lock Washer Thickness (Min.) | 0.38 mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 3.00 mm |
| Penetration Depth (Max.) | 1.27 mm |
| Penetration Depth (Min.) | 1.01 mm |
| Recess Diameter | 2.74 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Crest Cup Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
