  • Item Id: .3C35PPMZR

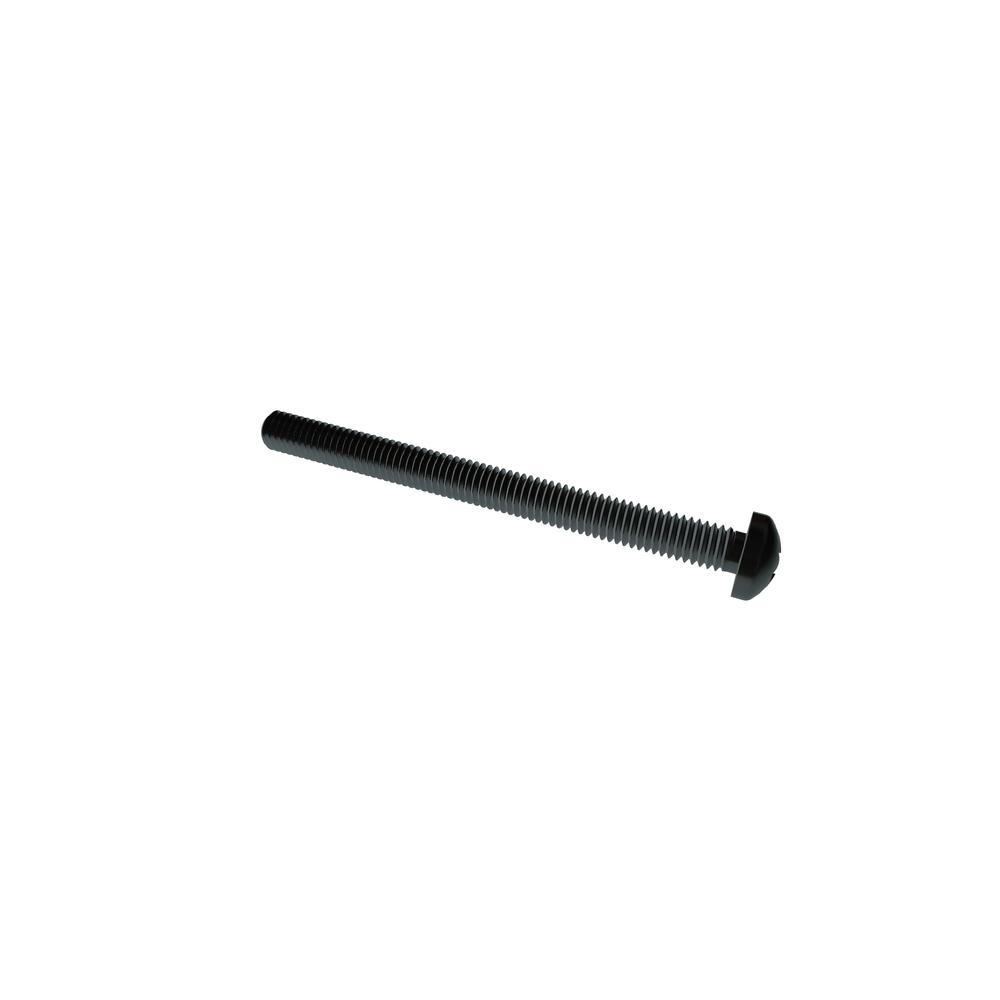

  • Description: M3-.5 X 35 PH PAN STL ZN CR3
  • Alternate Codes: 92005A133
  • Extended Description:
  • Quantity on Hand: 0
  • Packaging: EA
  • Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
  • Additional Industry Cross Reference92005A133 92005A133
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    Drive Size1
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
