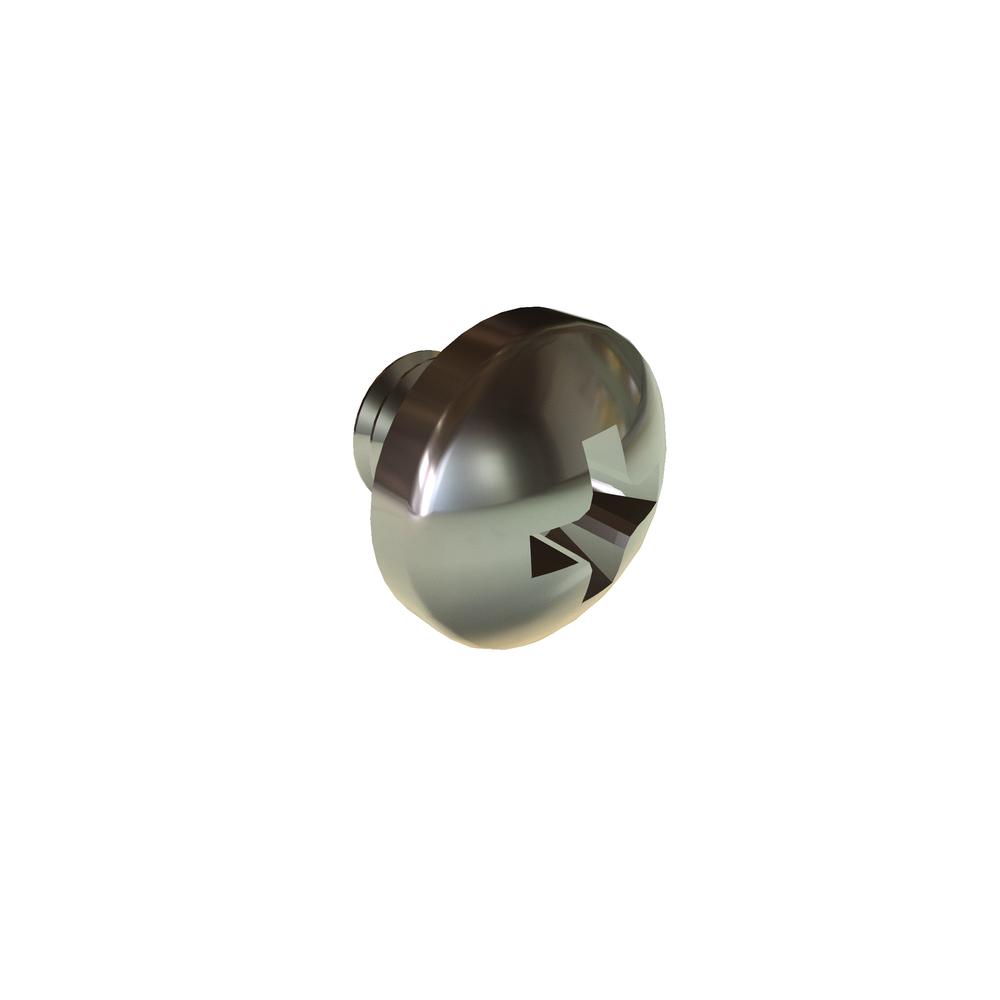

Image for reference purposes only. Actual product may vary.
.3C3PPMS
M3-.5 X 3 PH PAN SST RoHS
Alternate Codes: 92000A076
M3-.5 X 3 Phillips Pan DIN7985 Head Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.600 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In stock
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Drive Size | 1 |
| Recess Diameter | 2.90 mm |
| Head Radius (Min.) | 5.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Depth (Max.) | 1.80 mm |
| Additional Industry Cross Reference | 92000A076 92000A076 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 3.00 mm |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26mm |
