  • Item Id: .3C3PPMZR

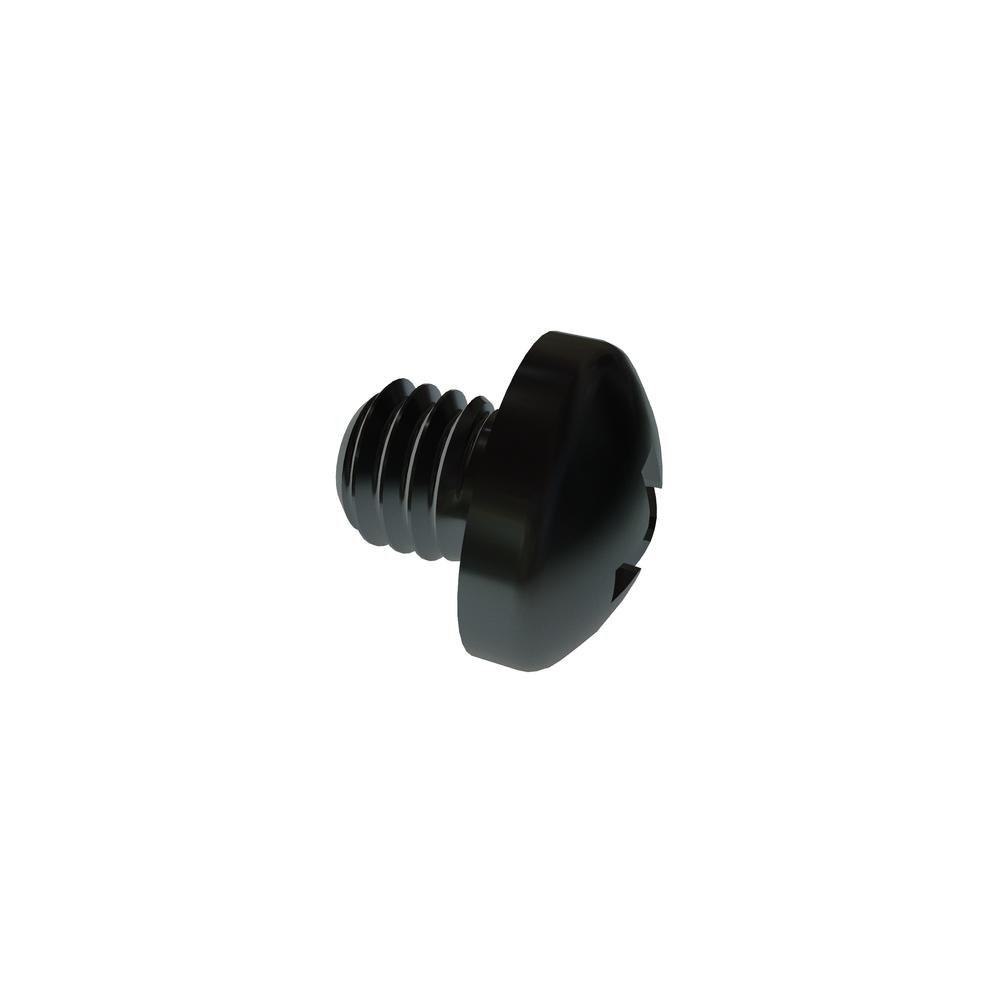

  • Description: M3-.5 X 3 PH PAN DIN7985 STL ZN
  • Alternate Codes: .3C3PPMZZ/R, 92005A111, BN384 M3X3
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.185$0.111$0.092$0.075Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92005A111 92005A111
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Clear
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C3PPMZR/PM3-.5 X 3 PH PAN PATCH STL ZN CR3View Details
