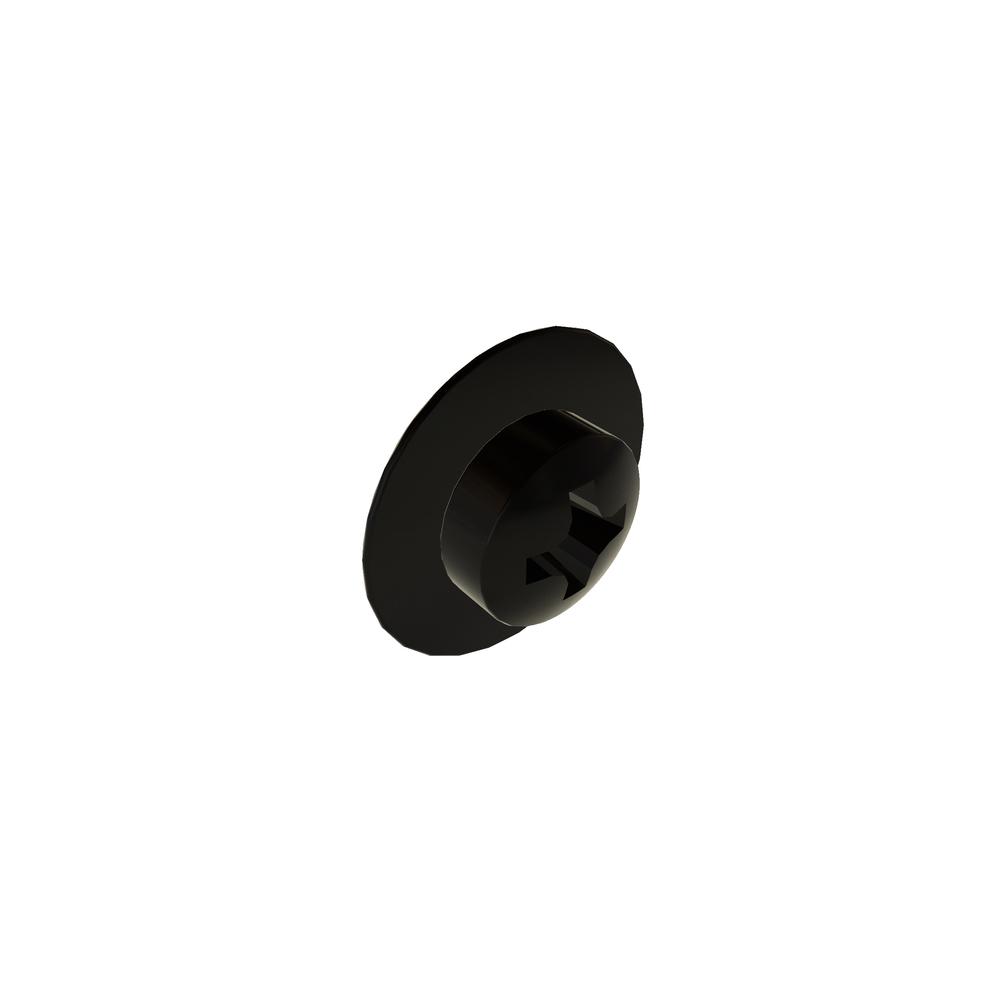

M3-.5 X 4 PHIL CUP WASH STL BLK RoHS
.3C4PCWZB
| Item Id | .3C4PCWZB |
| Description | M3-.5 X 4 PHIL CUP WASH STL BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Crown Height | 0.70 mm |
| Drive Type | Phillips |
| Finish | Black Oxide |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
| Head Side Height | 1.70 mm |
| Head Type | Cup Washer |
| Length | 4mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Recess Depth | 2.33 mm |
| Recess Diameter | 3.44 mm |
| Recess Width | 0.83 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Height | 1.80 mm |
| Washer Inner Diameter | 3.20 mm |
| Washer Outer Diameter | 10.00 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
