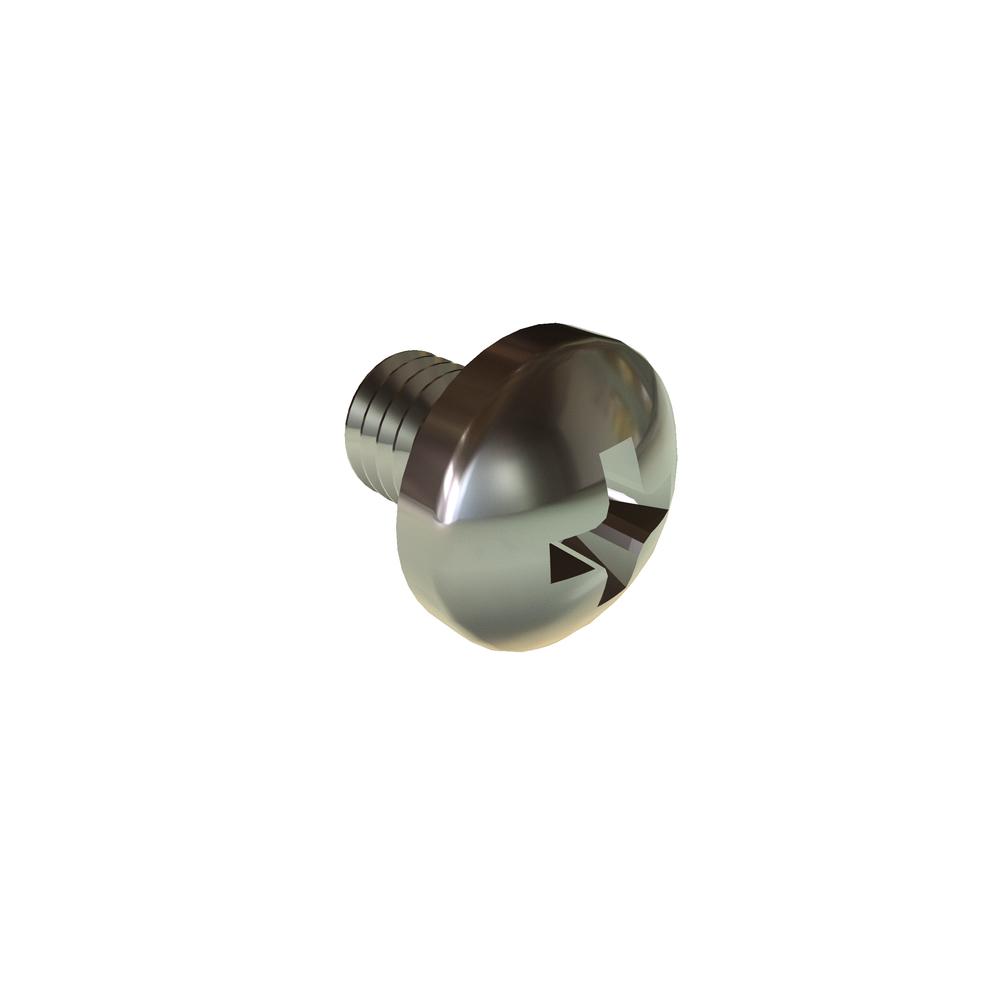

M3-.5 X 4 PH PAN SST RoHS
.3C4PPMS
| Item Id | .3C4PPMS |
| Description | M3-.5 X 4 PHIL PAN DIN7985 SST RoHS |
| Alternate Codes | 210-0015-01, 92000A113, BN660 M3X4 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 92000A113 92000A113 |
| Body Diameter (Max.) | 3.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Length | 4mm |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Recess Depth (Max.) | 1.80 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
