Item Categories




  • Item Id: .3C4PPMSB

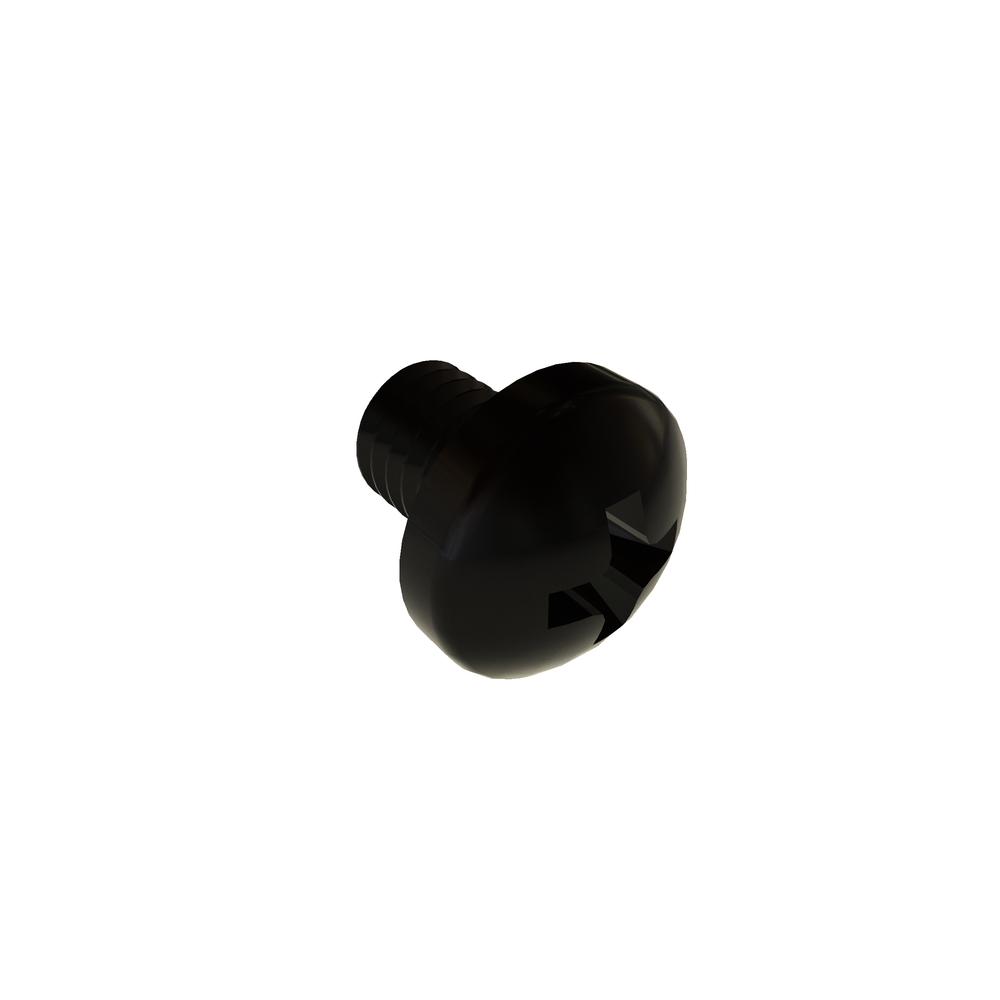

  • Description: M3-.5 X 4 PH PAN SST BLACK
  • Alternate Codes: 95836A201
  • Extended Description: RoHS
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    Additional Industry Cross Reference95836A201
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishBlack Oxide
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C4PPMSM3-.5 X 4 PH PAN SSTView Details
.3C4PPMS/PM3-.5 X 4 PH PAN PATCH SST RoHSView Details
.3C4PPMSB/PM3-.5 X 4 PH PAN PATCH SST BLACKView Details
.3C4PPMZBM3-.5 X 4 PH PAN STL BLK RoHSView Details
.3C4PPMZRM3-.5 X 4 PH PAN STL ZNView Details
.3C4PPMZR/PM3-.5 X 4 PH PAN PATCH STL ZNView Details
