  • Item Id: .3C4PPQZR

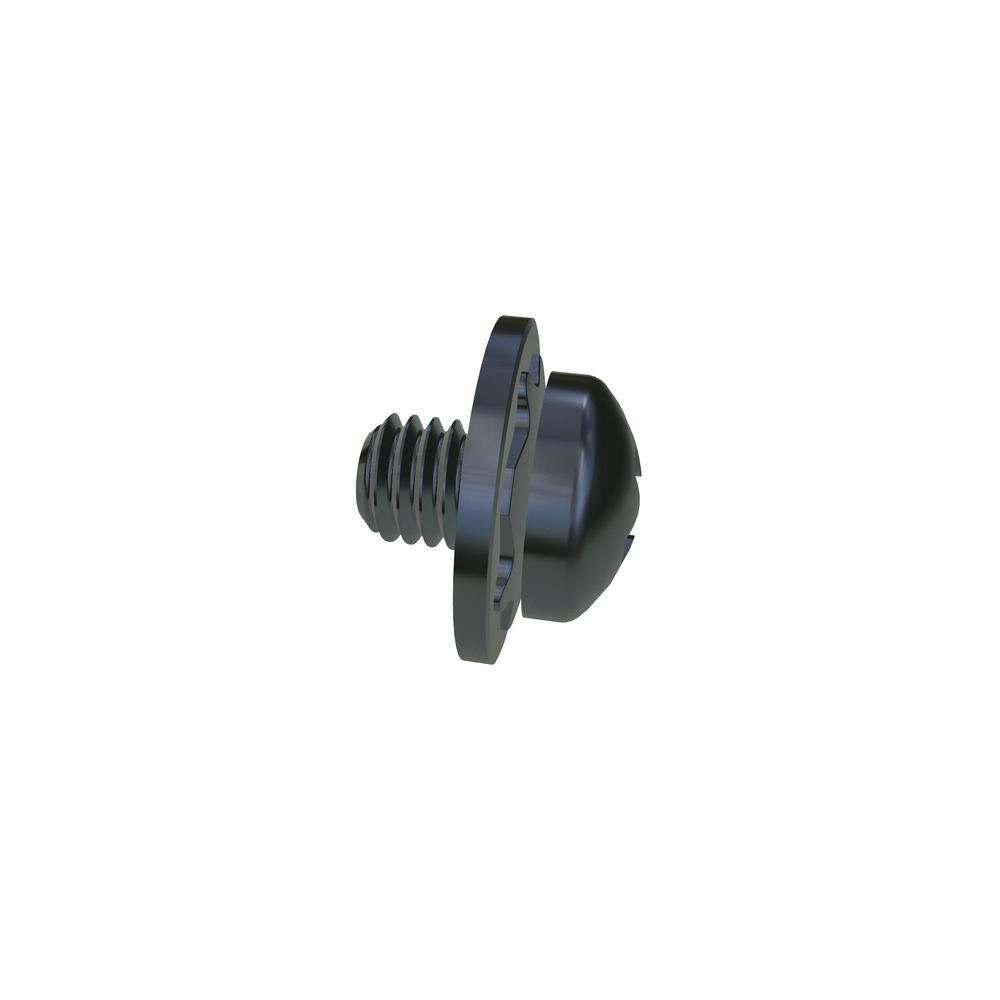

  • Description: M3-.5 X 4 PH PAN SQ CONE SEMS STL ZN CR3
  • Extended Description:
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
  • BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.20 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Lock Washer Height (Max.)1.55 mm
    Lock Washer Height (Min.)0.99 mm
    Lock Washer Outside Diameter (Max.)7.82 mm
    Lock Washer Outside Diameter (Min.)7.52 mm
    Lock Washer Thickness (Min.)0.64 mm
    MaterialSteel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Penetration Depth (Max.)1.80 mm
    Penetration Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeSquare Cone Washer
