  • Item Id: .3C4XPMS

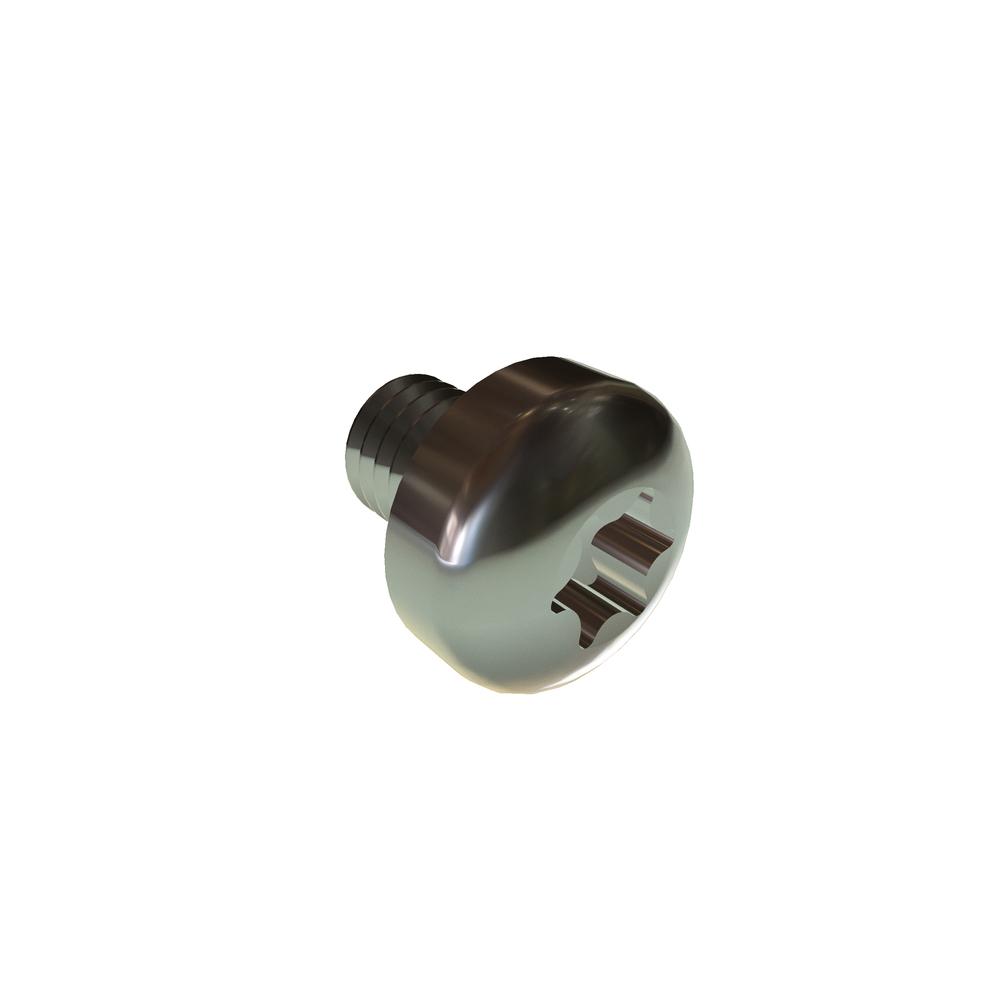

  • Description: M3-.5 X 4 TORX PAN SST RoHS
  • Alternate Codes: 90362A111
  • Extended Description:
  • Quantity on Hand: 0
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    Additional Industry Cross Reference90362A111
    BrandVARIED
    Drive SizeT10
    Drive TypeTorx
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)ISO 14583
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.27 mm
    Recess Depth (Min.)1.01 mm
    Recess Diameter2.74 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
