Item Categories

Defaultimage2 Image01

  • Item Id: .3C5PFM3

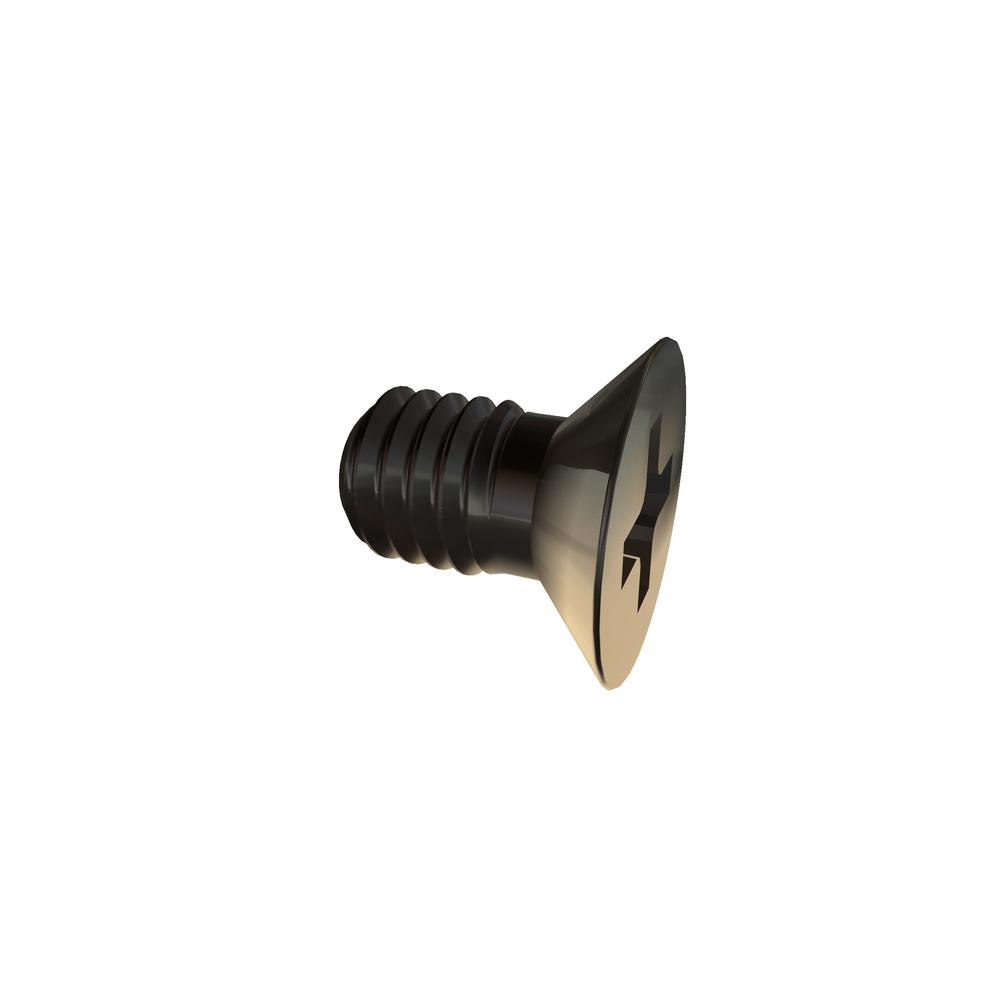

  • Description: M3-.5 X 5 PHIL FLAT DIN965 316 SST
  • Alternate Codes: 91801A150
  • Quantity Discounts:
    1 to 56Call For
    $0.723Larger Quantities
  • Extended Description:
  • Quantity on Hand: 56
  • Packaging: EA
  • Quantity:
  • Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
  • Additional Industry Cross Reference91801A150
    Drive Size1
    Drive TypePhillips
    Head Diameter (Max.)5.50 mm
    Head Diameter (Min.)5.20 mm
    Head Height1.70 mm
    Head TypeFlat
    Material316 Stainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth2.08 mm
    Recess Diameter3.10 mm
    Recess Width0.79 mm
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
