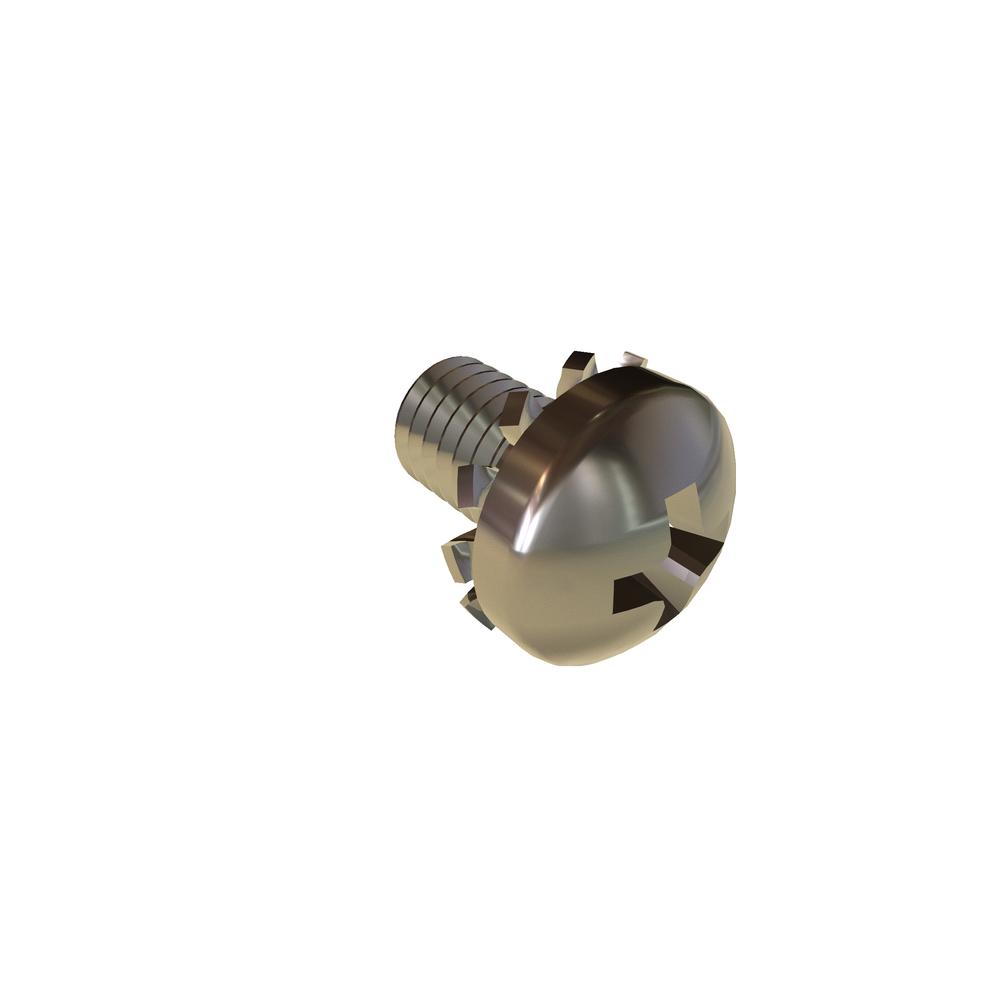

Image for reference purposes only. Actual product may vary.
.3C5PPES
M3-.5 X 5 PHIL PAN EXT SEMS SST RoHS
Alternate Codes: N/A
M3-.5 X 5 Phillips Pan Head External Sems Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.560 | $0.308 | $0.257 | $0.220 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 5mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 2.90 mm |
| Washer Type | External Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.45 mm |
| Lock Washer Outside Diameter (Min.) | 5.45 mm |
| Lock Washer Outside Diameter (Max.) | 5.85 mm |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Head Radius (Min.) | 5.00 mm |
| Lock Washer Thickness (Min.) | 0.30 mm |
