  • Item Id: .3C5PPM3

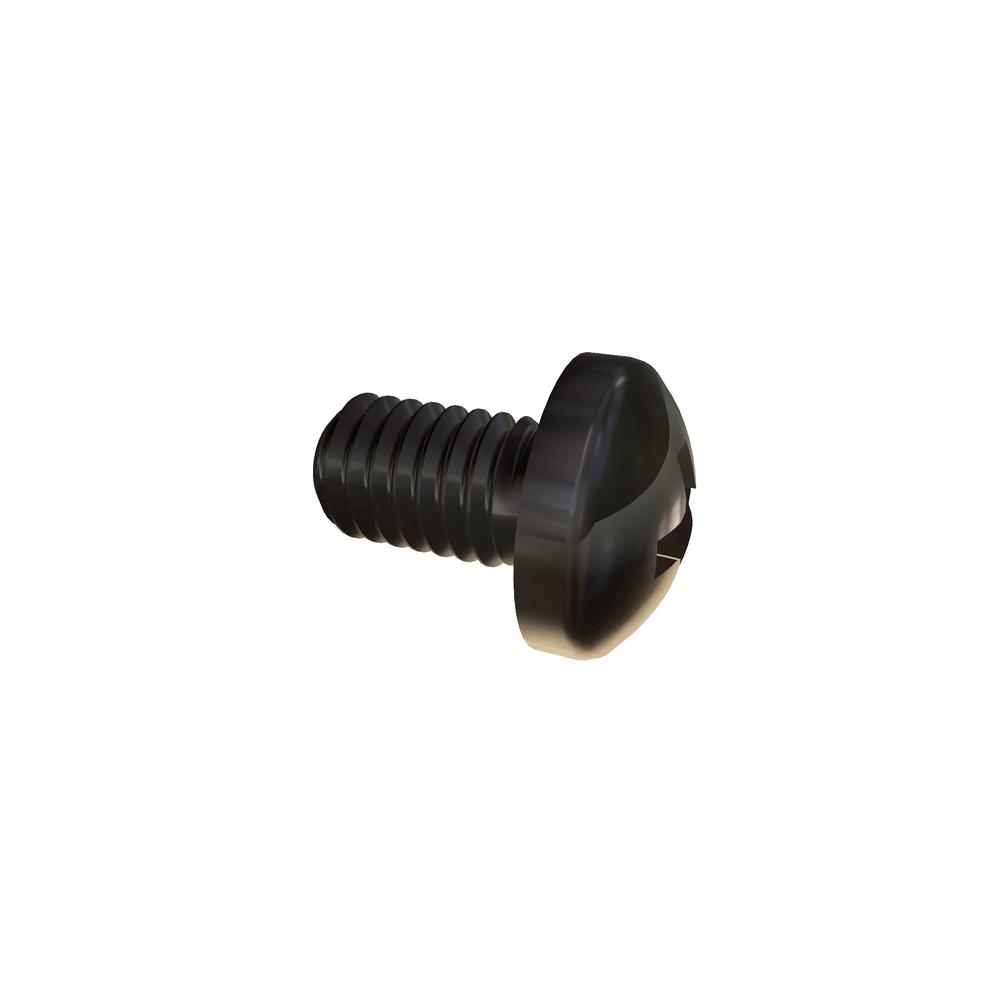

  • Description: M3-.5 X 5 PHIL PAN 316 SST
  • Alternate Codes: 90116A150
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.138$0.083$0.069$0.057Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference90116A150
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Material316 Stainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
