Item Categories

Defaultimage2 Image01



  • Item Id: .3C5PPMSB

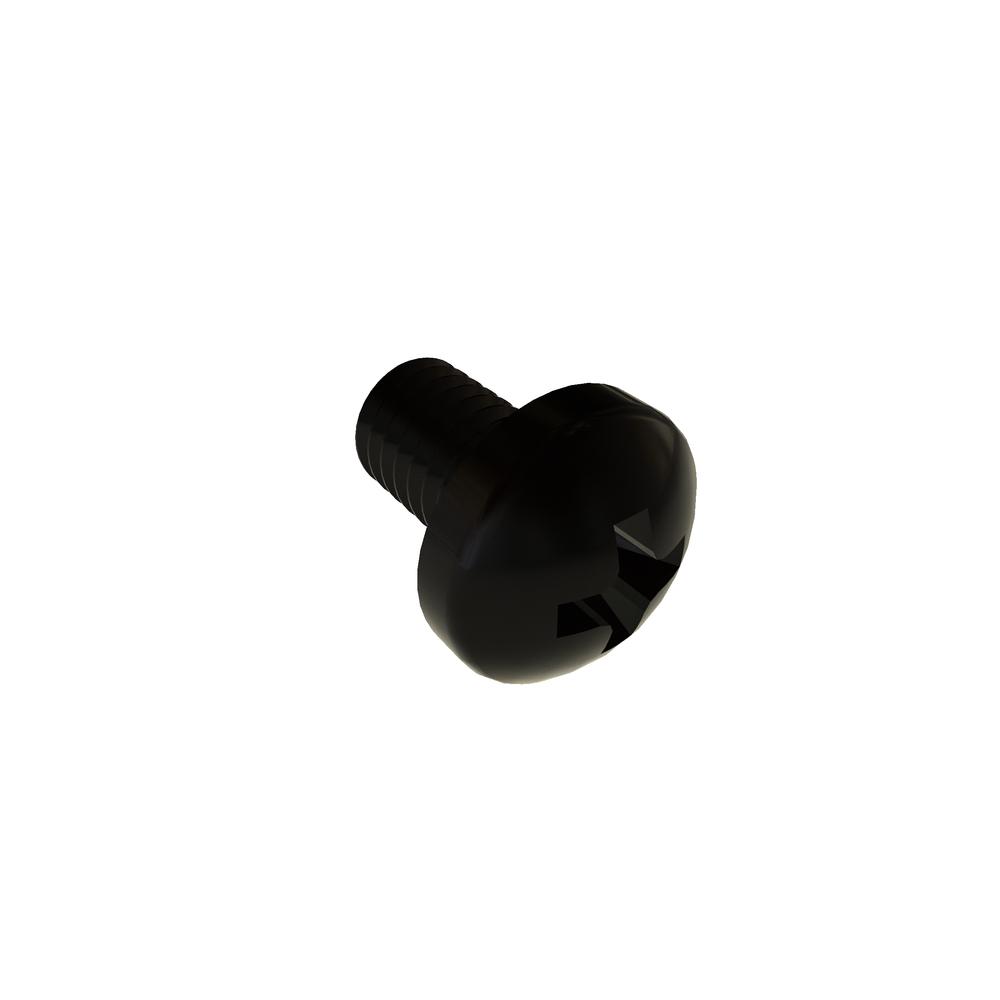

  • Description: M3-.5 X 5 PH PAN SST BLACK
  • Alternate Codes: 95836A203
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.246$0.130$0.103$0.095Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference95836A203
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishBlack Oxide
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C5PPMNM3-.5 X 5 PH PAN NYLView Details
.3C5PPMSM3-.5 X 5 PH PAN SSTView Details
.3C5PPMS/PM3-.5 X 5 PH PAN PATCH SST RoHSView Details
.3C5PPMS/VM3-.5 X 5 PH PAN VNT SST RoHSView Details
.3C5PPMZBM3-.5 X 5 PH PAN STL BLK RoHSView Details
.3C5PPMZNM3-.5 X 5 PH PAN STL NIView Details
.3C5PPMZRM3-.5 X 5 PH PAN STL ZN CR3View Details
.3C5PPMZR/PM3-.5 X 5 PH PAN PATCH STL ZN CR3View Details
