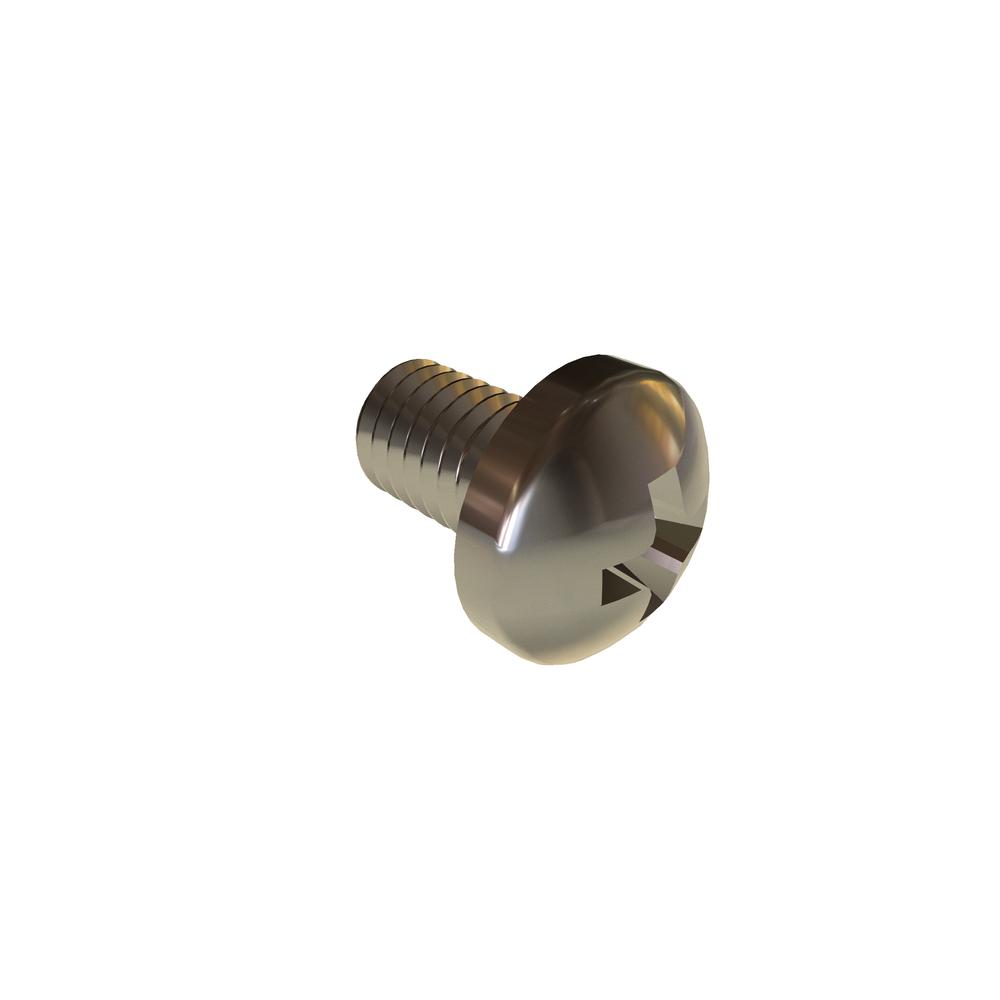

M3-.5 X 5 PH PAN VNT SST RoHS
.3C5PPMS/V
| Item Id | .3C5PPMS/V |
| Description | M3-.5 X 5 PHIL PAN VENTED SST RoHS |
| Extended Description | 25 PER BAG |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Length | 5mm |
| Material | Stainless Steel |
| Nominal Diameter | 3.00 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Penetration Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Units | Metric |
| Vent Hole Diameter | 0.90 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
