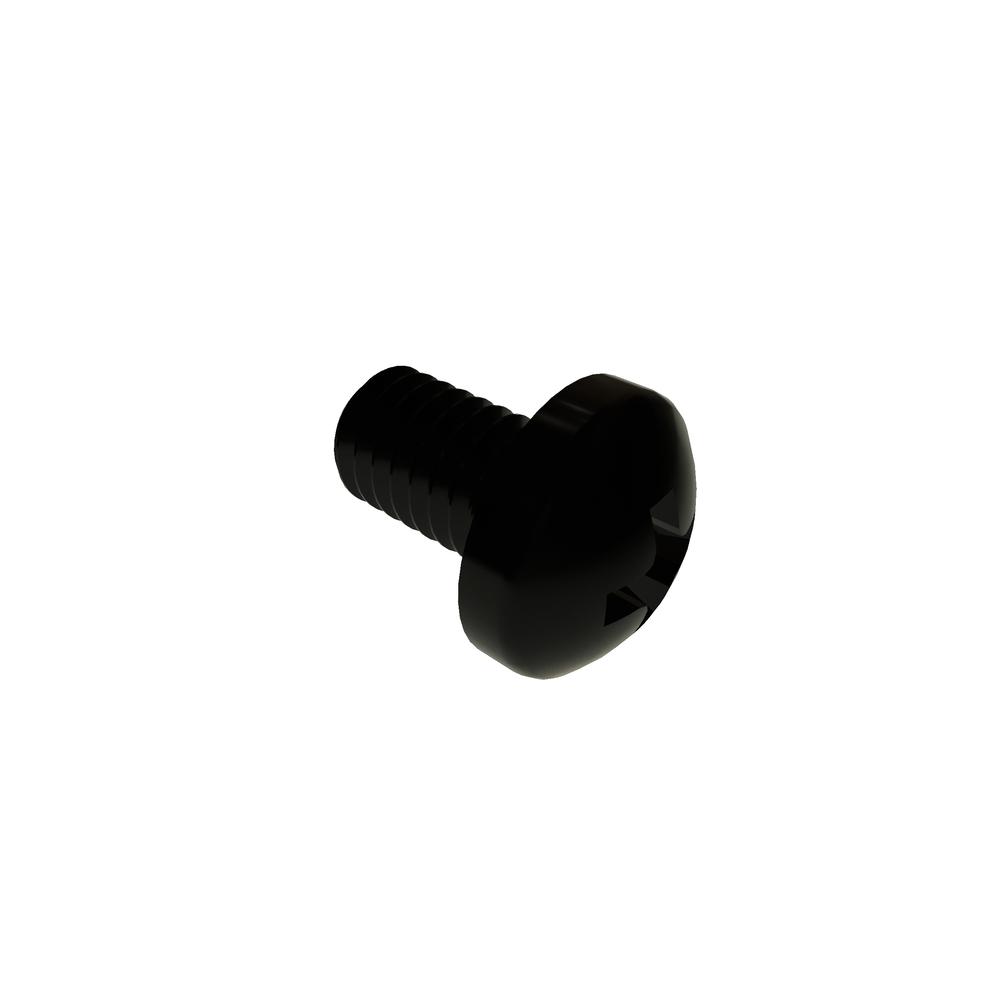

Image for reference purposes only. Actual product may vary.
.3C5PPMZB/P
M3-.5 X 5 PH PAN PATCH STL BLK
Alternate Codes: N/A
M3-.5 X 5 Phillips Pan Head Patch Steel Black Oxide RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.472 | $0.248 | $0.197 | $0.182 | $0.152 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M3x0.5 |
| Finish | Black Oxide |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 2.90 mm |
| Head Radius (Min.) | 5.00 mm |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
