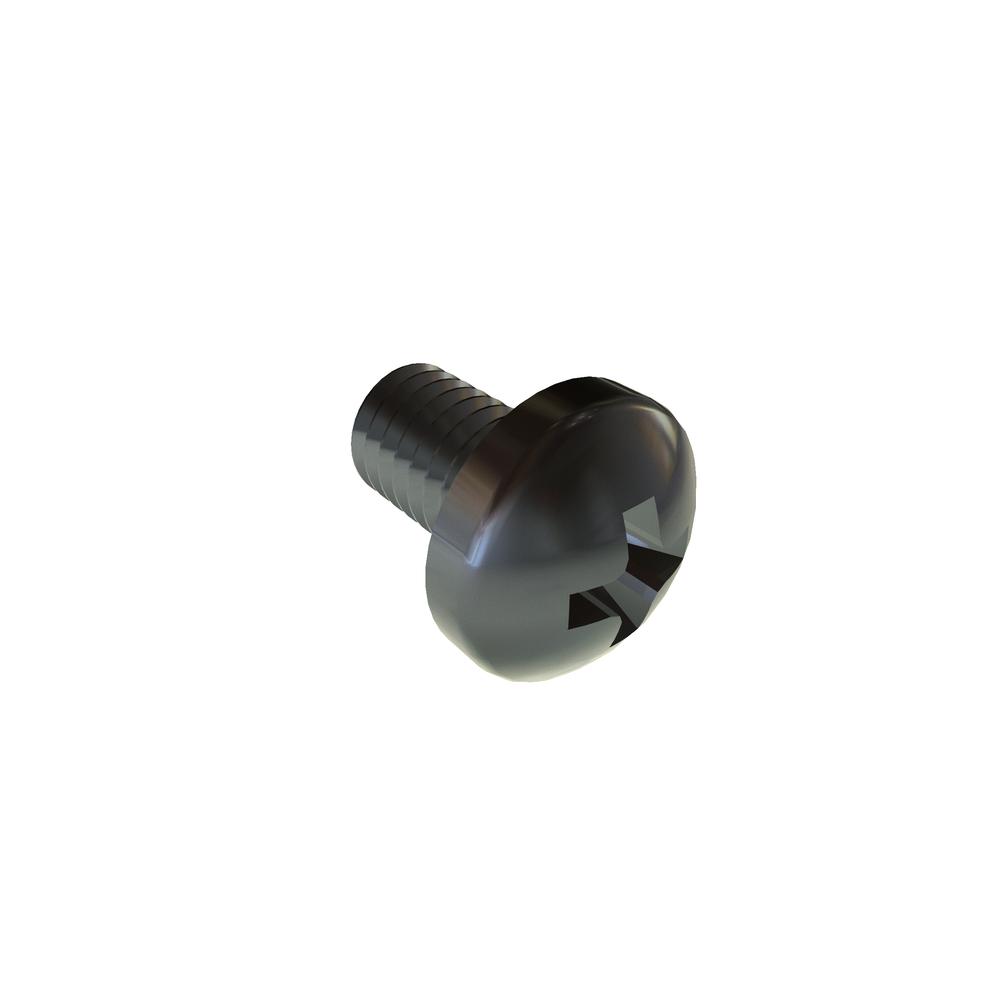

M3-.5 X 5 PH PAN STL NI
.3C5PPMZN
| Item Id | .3C5PPMZN |
| Description | M3-.5 X 5 PHIL PAN STL NICKEL PLTD RoHS |
| Extended Description | |
| Packaging | EA |
| Body Diameter (Max.) | 3.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Nickel |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Material | Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Recess Depth (Max.) | 1.80 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
