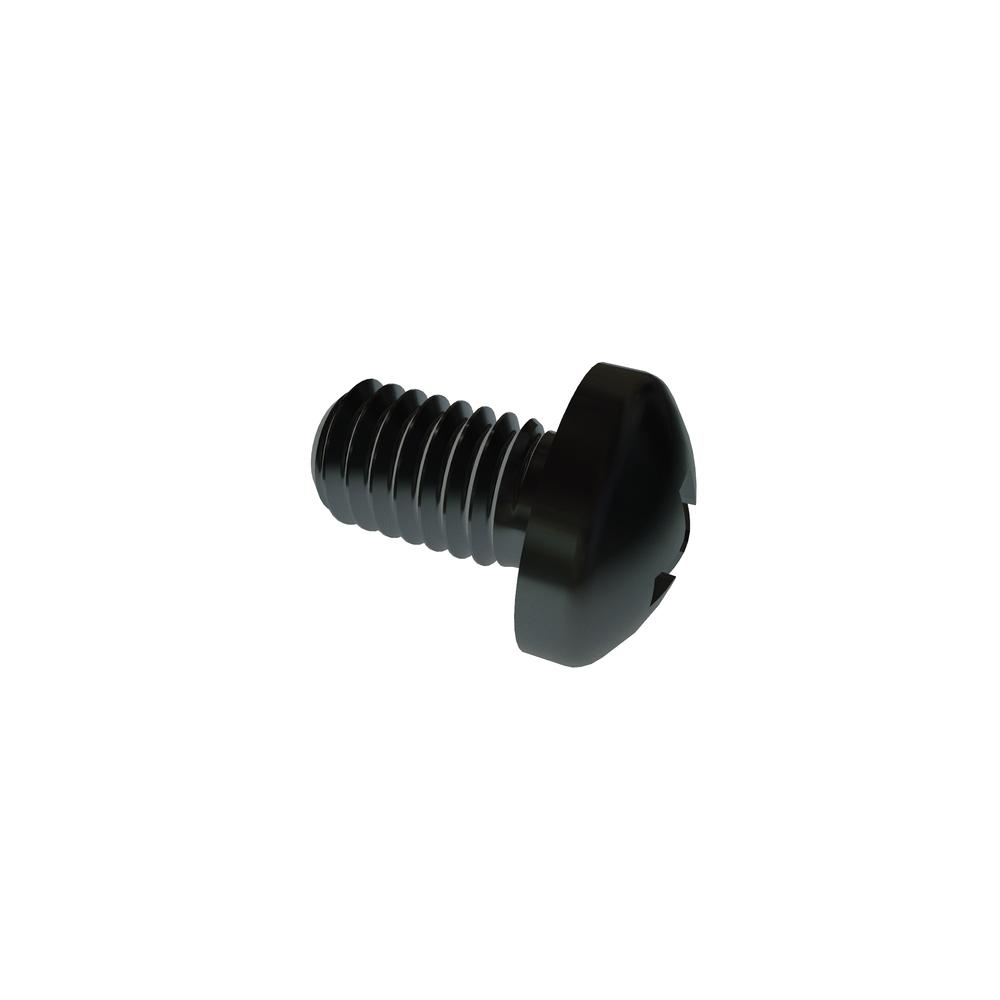

Defaultimage2 .3C5PPMZR M3-.5 X 5 PH PAN STL ZN CR3



  • Item Id: .3C5PPMZR
  • Description: M3-.5 X 5 PH PAN STL ZN CR3
  • Alternate Codes: .3C5PPMZZ/R, 150004, 60087, 700069-00, 7323-3005, 761-0011-00, 92005A114, BN384 M3X5
  • Quantity Discounts:
    1 to 499500 to 9991000 to 24992500 to 49995000 to 9999Call For
    $0.110$0.068$0.049$0.038$0.035Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • Additional Industry Cross Reference92005A114 92005A112
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialSteel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C5PPMNM3-.5 X 5 PH PAN NYLView Details
.3C5PPMSM3-.5 X 5 PH PAN SSTView Details
.3C5PPMS/PM3-.5 X 5 PH PAN PATCH SST RoHSView Details
.3C5PPMS/VM3-.5 X 5 PH PAN VNT SST RoHSView Details
.3C5PPMSBM3-.5 X 5 PH PAN SST BLACKView Details
.3C5PPMZBM3-.5 X 5 PH PAN STL BLK RoHSView Details
.3C5PPMZNM3-.5 X 5 PH PAN STL NIView Details
.3C5PPMZR/PM3-.5 X 5 PH PAN PATCH STL ZN CR3View Details
