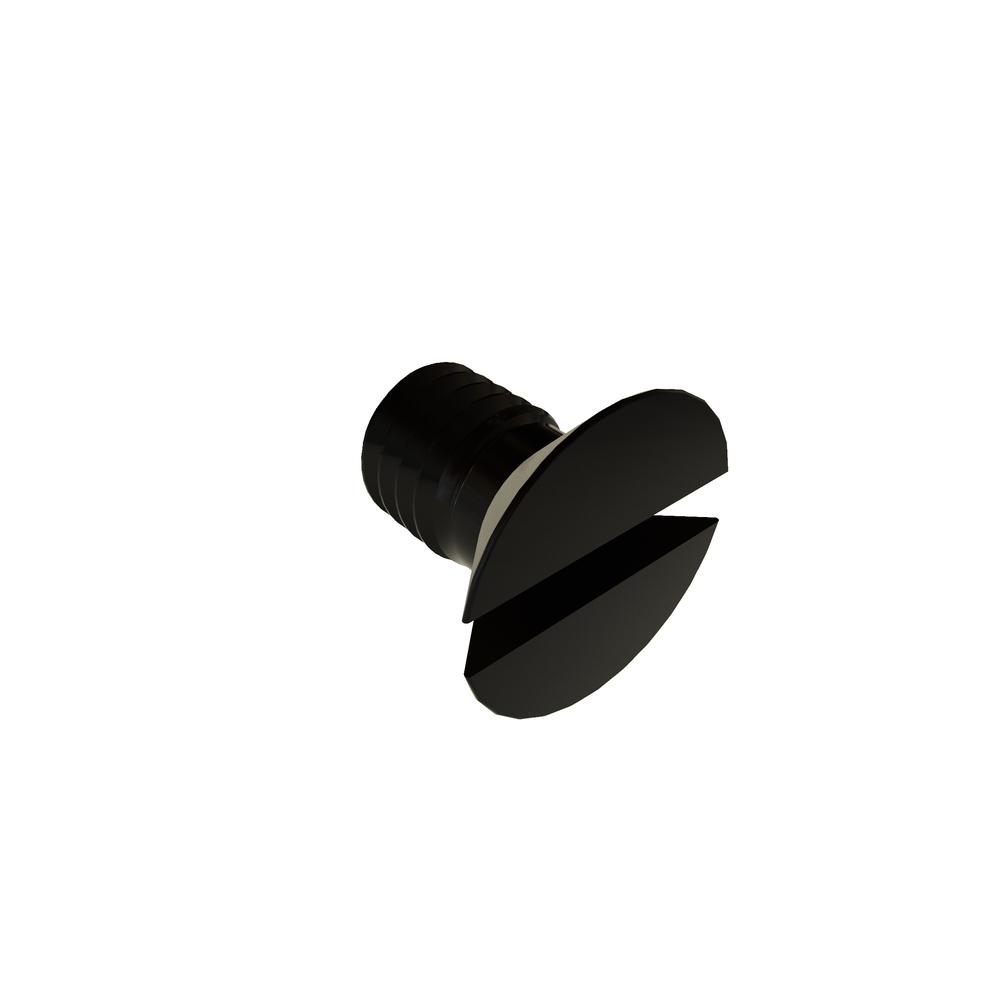

M3-.5 X 5 SLOT TRIM FLAT STL BLK OX RoHS
.3C5SFTZB
| Item Id | .3C5SFTZB |
| Description | M3-.5 X 5 SLOT TRIM FLAT STL BLK OX RoHS |
| Extended Description | M3-.5 X 5 SLOT TRIM FLAT head Steel Black oxide RoHS3 |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Black Oxide |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
| Head Height | 1.70 mm |
| Head Type | Flat |
| Length | 5mm |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| RoHS | Compliant |
| Slot Depth (Max.) | 0.9 mm |
| Slot Depth (Min.) | 0.60 mm |
| Slot Width (Max.) | 1 mm |
| Slot Width (Min.) | 0.86 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
